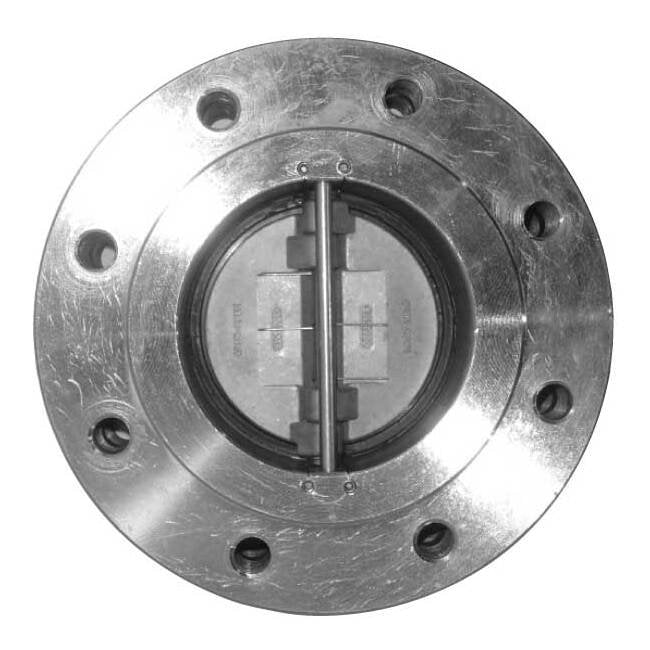

Sure Flow FE300SSL 6 Inch Retainerless Stainless Steel Lug Double Door Check Valve
Sure Flow FE300SSL 6 Inch Retainerless Stainless Steel Lug Double Door Check Valve
SKU:DOU-b23793
Reliable Sure Flow 6" Stainless Steel Double Door Check Valve - ISO 9001:2008 Certified
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow FE300SSL 6 Inch Retainerless Stainless Steel Lug Double Door Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE300SSL 6 Inch Retainerless Stainless Steel Lug Double Door Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE300SSL 6 Inch Retainerless Stainless Steel Lug Double Door Check Valve is a high-performance industrial valve designed for durable and reliable operation. Crafted from high-quality stainless steel, this valve features a unique double-door design for efficient flow control. It meets the International Organization for Standardization (ISO) 9001:2008 certification, ensuring top-notch quality and performance. With components like fluorocarbon seat/seal, SA351 CF8M disc, and Inconel torsion springs, this valve is built to withstand tough conditions, making it ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

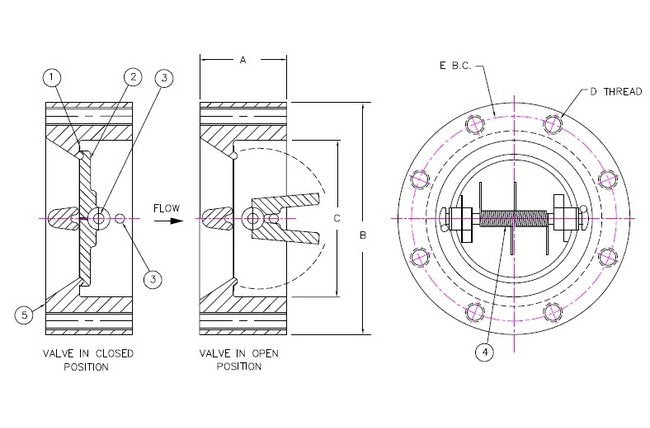

Dimensions Bolt Circle Bc E
10 5/8 in
Dimensions Dimension A
3 7/8 in
Dimensions Dimension B
12 1/2 in
Dimensions Dimension C
6 5/8 in
Dimensions Size
6 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
