Sure Flow FE300SSL 8" Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE300SSL 8" Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-135dc6
Sure Flow FE300SSL 8" Retainerless Double Door Check Valve, Stainless Steel, ISO 9001:2008 compliant
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow FE300SSL 8" Retainerless Carbon Steel Lug Double Door Check Valve
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE300SSL 8" Retainerless Carbon Steel Lug Double Door Check Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

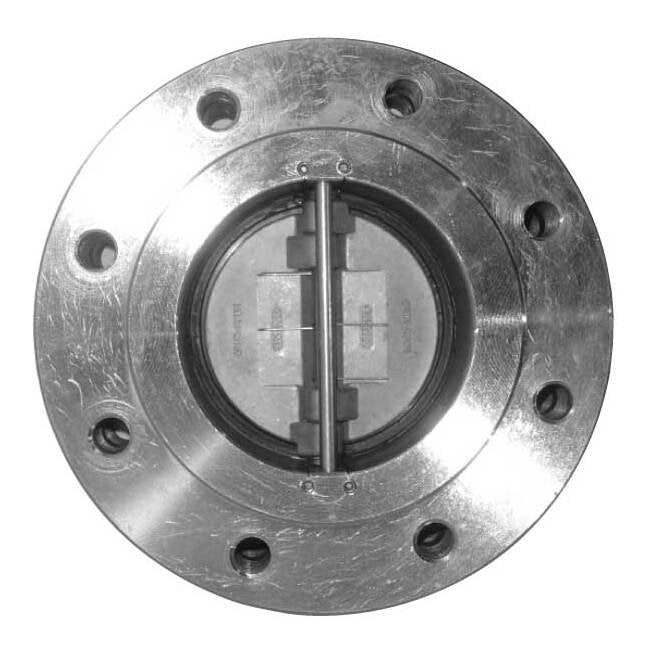

The Sure Flow FE300SSL 8-inch Retainerless Double Door Lug Check Valve is designed for reliable and efficient flow control. Constructed from high-quality stainless steel, this valve offers exceptional durability and corrosion resistance. With a double door design, it ensures smooth operation and minimal pressure drop. Compliant with ISO 9001:2008 standards, this valve guarantees top-notch performance in various industrial applications. Each part, from the fluorocarbon seal to the Inconel torsion spring, is engineered for longevity and optimal functionality.
Product Specifications

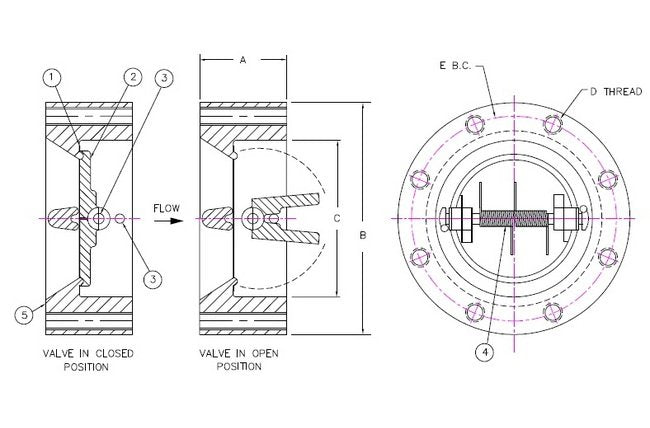

Dimensions Bolt Circle Bc E
13 in
Dimensions Dimension A
5 in
Dimensions Dimension B
15 in
Dimensions Dimension C
8 5/8 in
Dimensions Size
8 in
Dimensions Thread Size D
7/8-9 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
