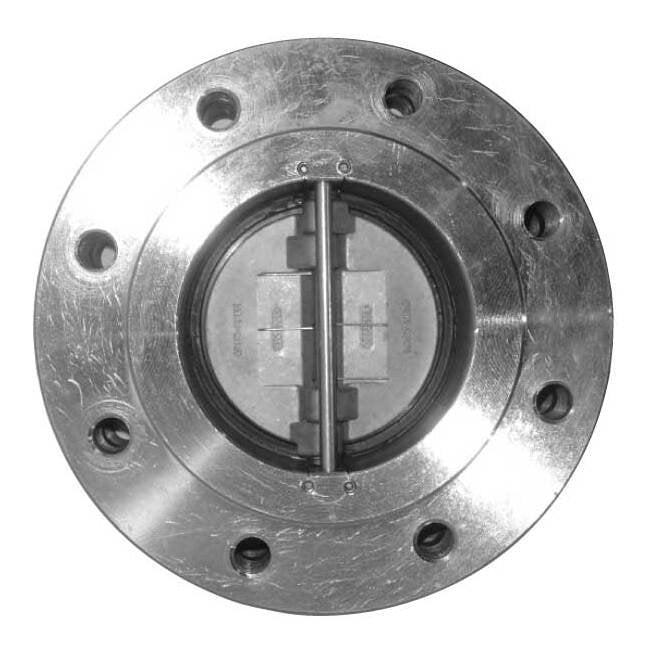

The Sure Flow FE300SSL is a top-of-the-line 2-inch retainerless carbon steel lug double door check valve designed for maximum efficiency and durability. Crafted from high-quality stainless steel, this check valve ensures a secure seal and reliable performance. It features a double door design for enhanced flow control and is built to meet International Organization for Standardization (ISO) 9001:2008 (Intertek) certification.
Product Specifications

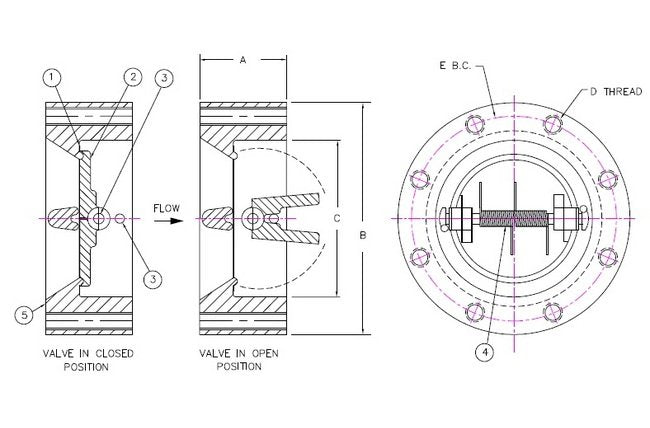

Dimensions Bolt Circle Bc E
5 in
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
6 1/2 in
Dimensions Dimension C
2 3/8 in
Dimensions Size
2 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
