Sure Flow FE600 8" Retainerless Carbon Steel Wafer Double Door Check Valve
Sure Flow FE600 8" Retainerless Carbon Steel Wafer Double Door Check Valve
SKU:DOU-8007bc
Sure Flow FE600 8" Carbon Steel Wafer Double Door Check Valve - Reliable, efficient, and ISO 9001:2008 certified.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow FE600 8" Retainerless Carbon Steel Wafer Double Door Check Valve
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE600 8" Retainerless Carbon Steel Wafer Double Door Check Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE600 Series 8-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a robust and reliable solution for fluid control. Constructed with high-quality materials, including carbon steel and 316 stainless steel components, this valve ensures durability and performance. The double door dual disc design enhances efficiency and reduces pressure drop, making it ideal for critical applications. Measuring 6 1/2" (A) x 12 5/8" (B) x 8 5/8" (C) and weighing 105 lbs, this valve meets ISO 9001:2008 standards and features fluorocarbon and Inconel components for optimal functionality.
Product Specifications
Dimensions Dimension A
6 1/2 in
Dimensions Dimension B
12 5/8 in
Dimensions Dimension C
8 5/8 in
Dimensions Size
8 in
Dimensions Weight
105 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

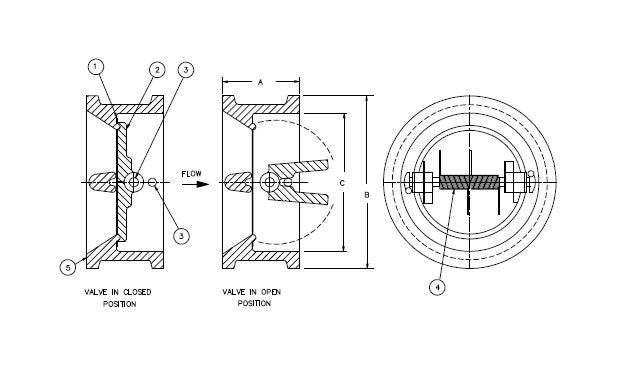

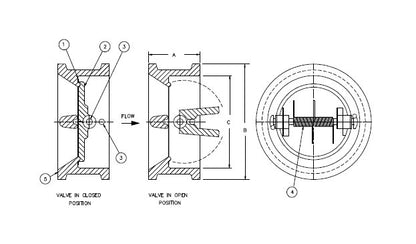

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
