Sure Flow Equipment, Inc. →

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

DOU-9542a0

Reliable Sure Flow 14in Carbon Steel Wafer Dual Disc Check Valve - Compliant with ISO 9001:2008

$599.99
$599.99
Sale

Initiate Order

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$599.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE600 Series 14 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve is a premium-grade solution designed for superior performance. Constructed with high-quality materials including Carbon Steel and precision parts, this valve ensures reliable operation and durability. With a retainerless design and dual disc mechanism, it offers efficient flow control and exceptional sealing. Compliant with International Organization for Standardization (ISO) 9001:2008 (Intertek) standards, this valve is suitable for diverse industrial applications.

Product Specifications

Dimensions Dimension A
10 3/4 in
Dimensions Dimension B
19 3/8 in
Dimensions Dimension C
13 3/4 in
Dimensions Size
14 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

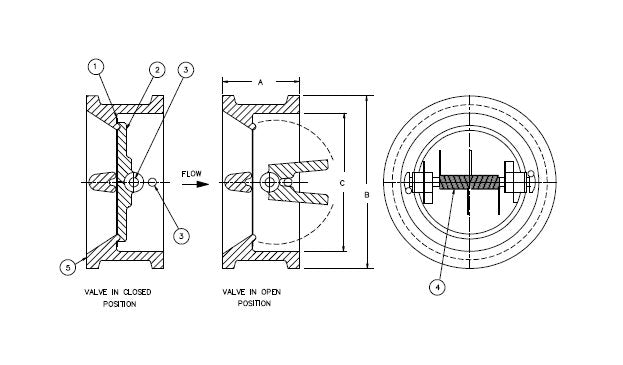

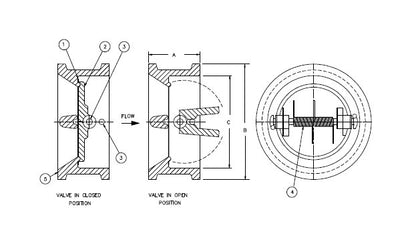

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
