Sure Flow FE600 Series 28 Inch Carbon Steel Double Door Dual Disc Check Valve

Name: Sure Flow FE600 Series 28 Inch Carbon Steel Double Door Dual Disc Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-157184
Price: 799.99 USD
Availability: OutOfStock

SKU:DOU-157184

Reliable Sure Flow 28-Inch Carbon Steel Double Door Check Valve for industrial use. ISO 9001:2008 compliant.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE600 Series 28 Inch Carbon Steel Double Door Dual Disc Check Valve is designed for exceptional performance and reliability in industrial applications. Constructed with high-quality materials, including Carbon Steel body and 316 Stainless Steel components, it ensures durability and longevity. The retainerless design enhances efficiency, while the dual disc configuration provides superior sealing. Meeting ISO 9001:2008 standards, this valve guarantees quality and compliance for your critical operations.

Product Specifications

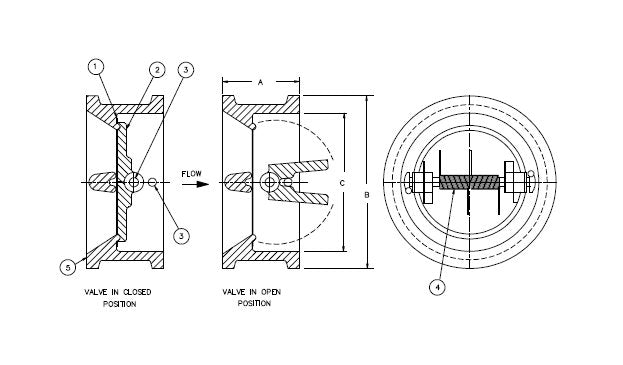

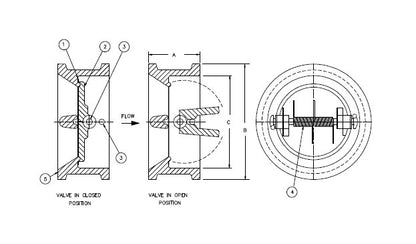

Dimensions Dimension A

19 in

Dimensions Dimension B

36 in

Dimensions Dimension C

27 5/8 in

Dimensions Size

28 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE600 Series 28 Inch Carbon Steel Double Door Dual Disc Check Valve
