Sure Flow FE600 Series 3 Inch Carbon Steel Wafer Double Door Check Valve
Sure Flow FE600 Series 3 Inch Carbon Steel Wafer Double Door Check Valve
SKU:DOU-107b43
High-quality 3-inch carbon steel wafer double door check valve for precise fluid control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FE600 Series 3 Inch Carbon Steel Wafer Double Door Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE600 Series 3 Inch Carbon Steel Wafer Double Door Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE600 Series 3 Inch Size Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for fluid control applications. Constructed with high-quality materials and a precision design, this check valve ensures efficient flow control with minimal pressure drop. Compliant with ISO 9001:2008 standards, it features a durable cast body, fluorocarbon seat/seal, stainless steel disc, shaft, and torsion springs.
Product Specifications
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
5 7/8 in
Dimensions Dimension C
3 3/4 in
Dimensions Size
3 in
Dimensions Weight
12 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

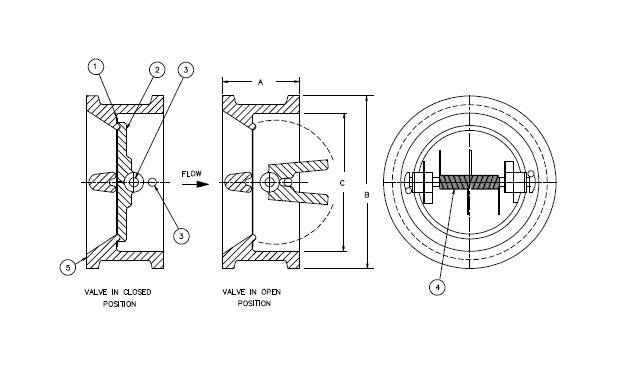

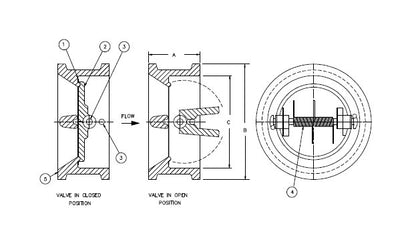

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
