Sure Flow FE600 Series 32 Inch Carbon Steel Wafer Double Door Check Valve
Sure Flow FE600 Series 32 Inch Carbon Steel Wafer Double Door Check Valve
SKU:DOU-3eac3f
Reliable Sure Flow 32in Carbon Steel Wafer Double Door Check Valve, ISO 9001:2008 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FE600 Series 32 Inch Carbon Steel Wafer Double Door Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE600 Series 32 Inch Carbon Steel Wafer Double Door Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE600 Series 32 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for both consumer and institutional needs. Constructed from high-quality carbon steel, this valve features a double door design with dual discs for enhanced performance. Meeting International Organization for Standardization (ISO) 9001:2008 (Intertek) standards, this valve is ideal for a wide range of applications. With fluorocarbon seat/seal, 316 stainless steel disc, and Inconel® torsion springs, this valve guarantees durability and longevity.
Product Specifications
Dimensions Dimension A
21 in
Dimensions Dimension B
40 1/4 in
Dimensions Dimension C
30 13/16 in
Dimensions Size
32 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

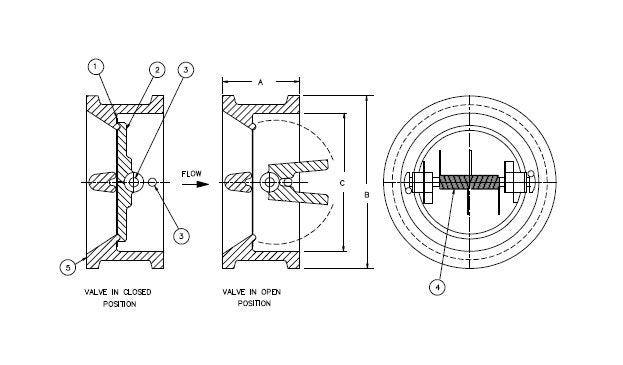

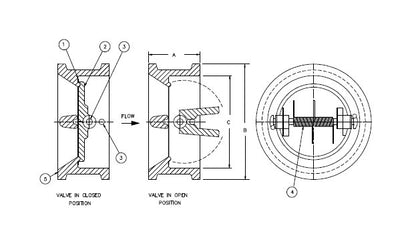

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
