Sure Flow FE900 Series 16 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE900 Series 16 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-760d11
High-performance 16-inch carbon steel double door check valve with ISO 9001:2008 certification for industrial fluid control.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FE900 Series 16 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE900 Series 16 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE900 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a high-performance solution for industrial fluid control. This valve features a robust design with a fluorocarbon seat/seal, SA351 CF8M discs, and a cast body for durability and reliability. With ISO 9001:2008 certification, this valve ensures quality and compliance with international standards.
Product Specifications
Dimensions Dimension A
15 1/8 in
Dimensions Dimension B
22 5/8 in
Dimensions Dimension C
16 11/16 in
Dimensions Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

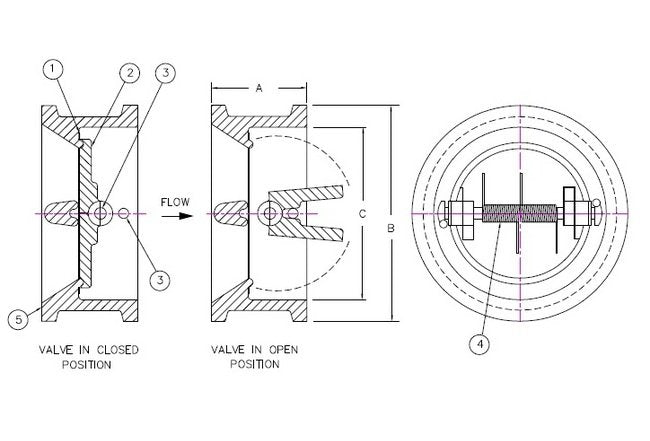

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
