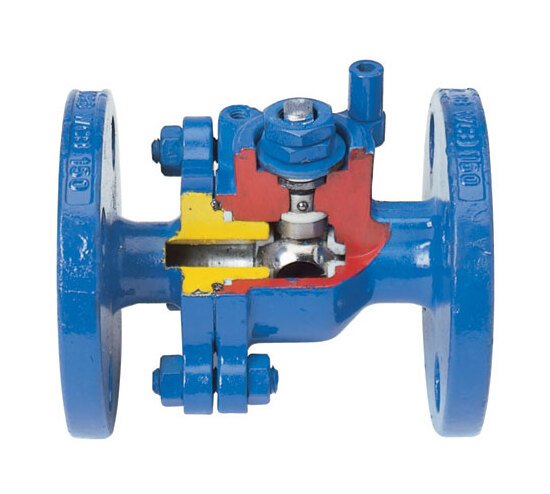

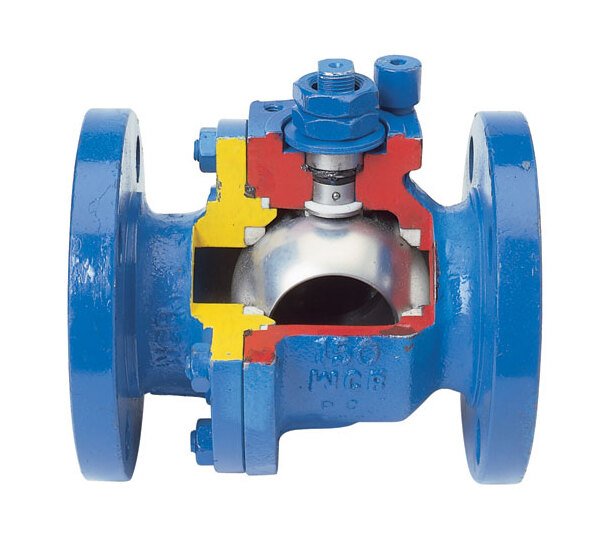

The Sure Flow Fire Safe Flanged Ball Valves are a reliable and safety-focused choice for industrial applications. Designed and manufactured in compliance with ANSI, API, and BS standards, these valves feature anti-static devices, stem bearings for radial loading absorption, and multiple stem sealing for optimal performance. With a fire-safe design conforming to API 607 (Edition IV) and BS-6755 Part II, these valves ensure the highest standard of safety. Offering a range of material options for different components, these valves guarantee durability and efficiency in demanding environments.
Product Specifications
Construction Construction
Part No - 1Part - BodyMaterial Options - ASTM-A216 WCB / A351 CF8MPart No - 2Part - Body AdaptorMaterial Options - ASTM-A216 WCB / A351 CF8MPart No - 3Part - BallMaterial Options - A351 CF8MPart No - 4Part - StemMaterial Options - A 479 SS316Part No - 5Part - SeatMaterial Options - RPTFEPart No - 6Part - O RingMaterial Options - Fluorocarbon (FKM)Part No - 7Part - Stem GasketMaterial Options - RPTFE / GRAPHITE (Combination)Part No - 8Part - SpacerMaterial Options - ASTM - A479 SS316Part No - 9Part - Cup SpringMaterial Options - 50 Cr V4Part No - 10Part - Stem NutMaterial Options - A 194 GR8M / A 194 2HPart No - 11Part - HandleMaterial Options - MS (zinc plated)Part No - 12Part - Stop PinMaterial Options - ASTM - A 479 SS316 / MSPart No - 13Part - Body GasketMaterial Options - RPTFE / GRAPHITE (Combination)Part No - 14Part - Stud/Bo ItMaterial Options - A 193 B8M / A 193 B7Part No - 15Part - NutMaterial Options - A 194 GR8M / A 194 2HPart No - 16Part - Stem BushMaterial Options - PHOSPHOR BRONZEPart No - 17Part - Stem HousingMaterial Options - ASTM - A216 WCB / A 351 CF8M
Dimensions Size
1 in | 1 1/2 in | 1/2 in | 10 in | 12 in | 2 in | 3 in | 3/4 in | 4 in | 6 in | 8 in
Fire Safe Design Features Fire Safe Design Features

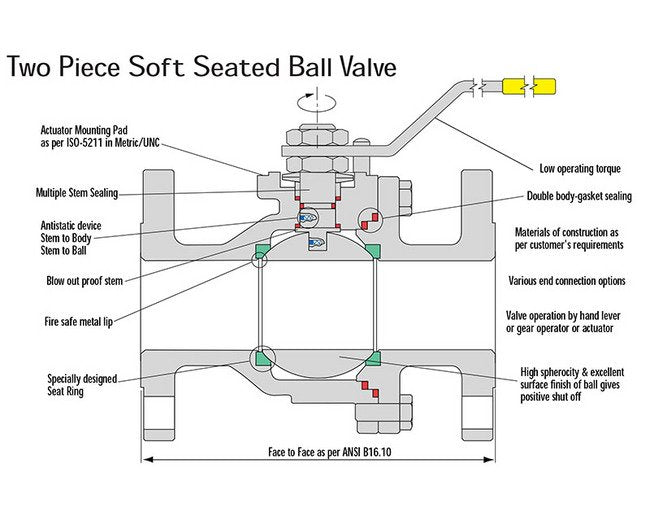

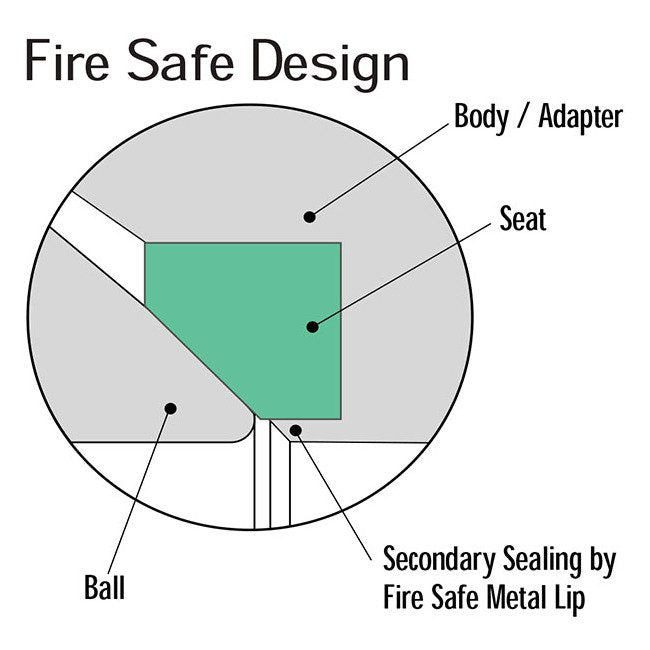

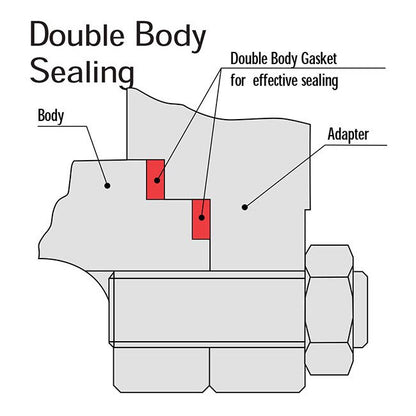

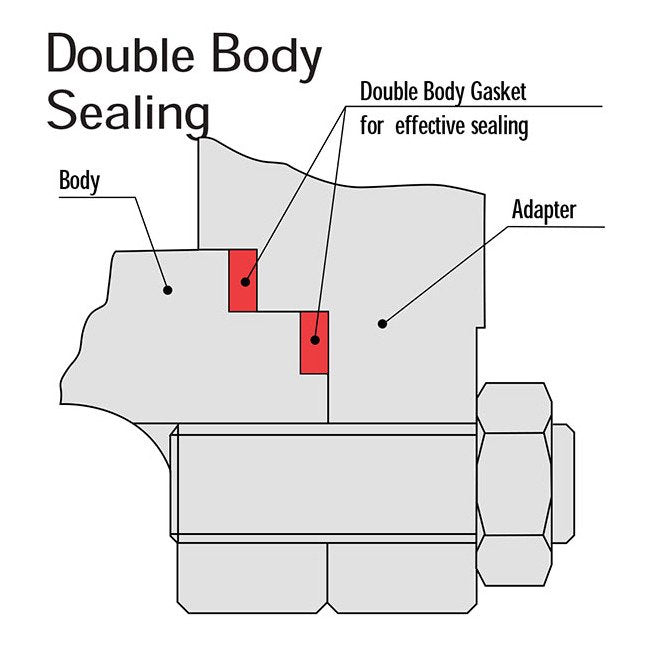

Anti static devices are built in the valve stem to ensure electrical continuity between ball, stem and body. Thus, providing greater safety while handling volatile media.Higher size ball valves are designed with stem bearing to absorb radial loading on the stem.Multiple stem sealing ensures high degree of sealing.Sure Flow valves incorporate ISO-5211 top pad which simplifies actuator/gear operator mounting.Fire safe conformance to API 607 (Edition IV) / API 6FA / BS-6755 Part II assures highest standard of safety.Certified by customer's inspector and independent certifying authorities. Fire safe tests have been witnessed and certified by Lloyd's RegisterDouble body gasket ensures positive body-joint sealing against pipeline stresses.
Industry Standardscertifications Industry Standardscertification
Sure Flow valves are designed and manufactured as per ANSI B 16.34, API 6D & BS 5351. These standards cover Pressure-Temperature ratings, minimum shell thickness and bore diameter for each size/class. Manufacturer has achieved ISO 9001 Certificate of RegistrationWe offer valve castings and trim standard per NACE MR0175-96.Castings inspection as per MSS - SP 53, 54, 59, 93 & 94.Actuator mounting pad on the valve is as per ISO 5211. Design & Testing StandardsOther applicable standards:Face to face: ANSI B 16.10Flange dimensions: ANSI B 16.5Butt welded valve ends: ANSI B 16.25Pressure tests: API 598 / B 6 6755 Part 1Fire safe: API 607 4th Edition / API 6FA /
Specifications Body Style
150#CLASS - ASTM-A216 WCB | 150#CLASS - ASTM-A351 CF8M | 300#CLASS - ASTM-A216 WCB | 300#CLASS - ASTM-A351 CF8M
Specifications Flange
Face to Face ANSI B 16.10Flange Dimension ANSI B 16.5
Specifications Operator
Bare Stem | Gear with wheel | Lever
Specifications Port
Full Bore | Reduced Bore
