Sure Flow FV125 12-Inch Cast Iron Silent Seat Foot Valve
Sure Flow FV125 12-Inch Cast Iron Silent Seat Foot Valve
SKU:DOU-3fd02b
Reliable Sure Flow FV125 Foot Valve for low head loss and 'drop-tight seating' under pressure. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow FV125 12-Inch Cast Iron Silent Seat Foot Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV125 12-Inch Cast Iron Silent Seat Foot Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

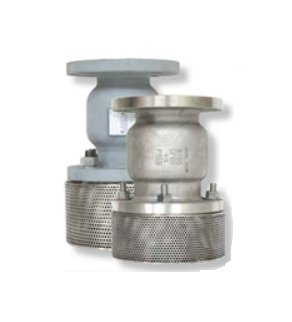

The Sure Flow FV125 12-inch Cast Iron Silent Seat Foot Valve with Flanged End Connections offers exceptional performance with low head loss and heavy-duty stainless steel basket screening. Featuring a Buna-N Quad Ring for 'drop-tight seating' at all pressure ranges without damage, this foot valve ensures reliable operation. Compliant with ASME Class 125 and ISO 9001:2008 standards, it provides silent operation, positive shut-off, and durability for industrial applications.
Product Specifications

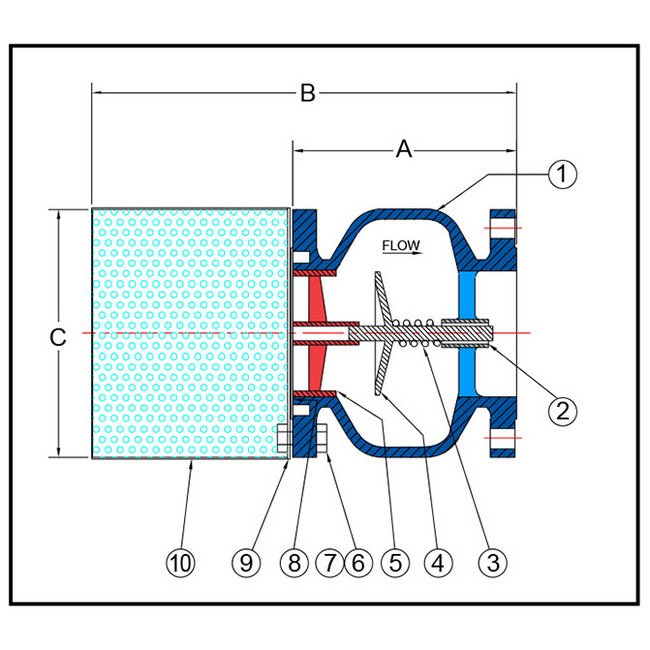

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
20 1/4 in
Dimensions Dimension B
26 in
Dimensions Dimension C
19 1/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
716 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
2,060
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
