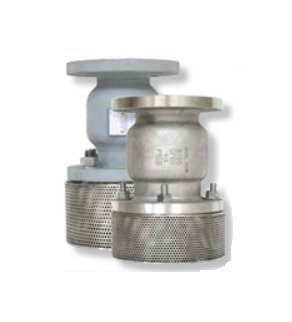

Sure Flow FV125 14 Inch Cast Iron Silent Seat Foot Valve
Sure Flow FV125 14 Inch Cast Iron Silent Seat Foot Valve
SKU:DOU-54faee
Sure Flow FV125 14" Silent Seat Foot Valve: Low head loss, drop-tight seating, ASME Class 125 & ISO 9001:2008 compliant
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow FV125 14 Inch Cast Iron Silent Seat Foot Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV125 14 Inch Cast Iron Silent Seat Foot Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV125 14 Inch Cast Iron Silent Seat Foot Valve features a full-ported body for low head loss, heavy-duty stainless steel basket screening, and a Buna-N Quad Ring for drop-tight seating at higher pressures. This valve ensures positive shut-off without additional load on the seal, silent operation, and comes with a 1/8" perf. Stainless Steel Screen. Constructed meeting ASME Class 125 and ISO 9001:2008 standards.
Product Specifications

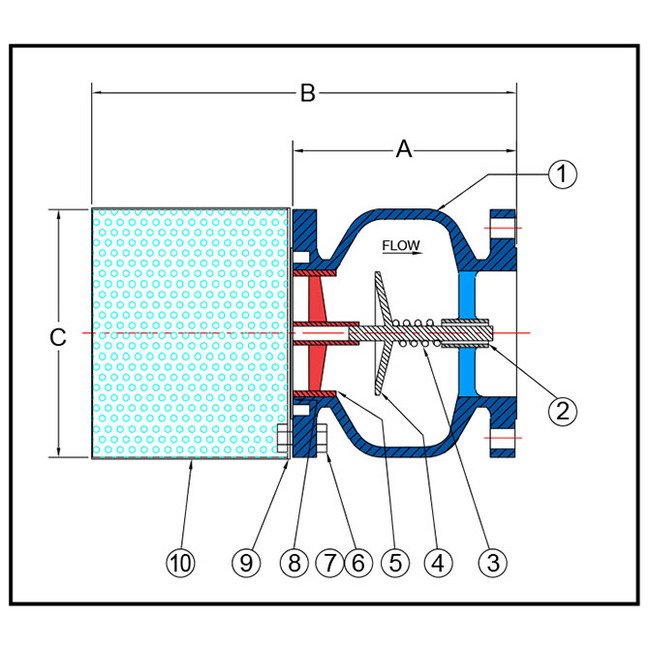

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
22 3/4 in
Dimensions Dimension B
31 1/4 in
Dimensions Dimension C
21 1/4 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
1,138 lb
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
2,680
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
