Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

DOU-2797bc

Sure Flow FV125 16-Inch Cast Iron Foot Valve - ASME Class 125 & ISO 9001:2008 compliant

$599.99
$599.99
Sale

Initiate Order

Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

$599.99

Quantity: 1

Claim Your Seller Account

Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FV125 16-Inch Cast Iron Silent Seat Foot Valve with Flanged End Connections is designed for minimal head loss with a full-ported body and heavy-duty stainless steel screening. Featuring a Buna-N Quad Ring for drop-tight seating at higher pressures, this foot valve ensures reliable performance. Compliant with ASME Class 125 and ISO 9001:2008 standards, it offers positive shut-off with silent operation, making it ideal for industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

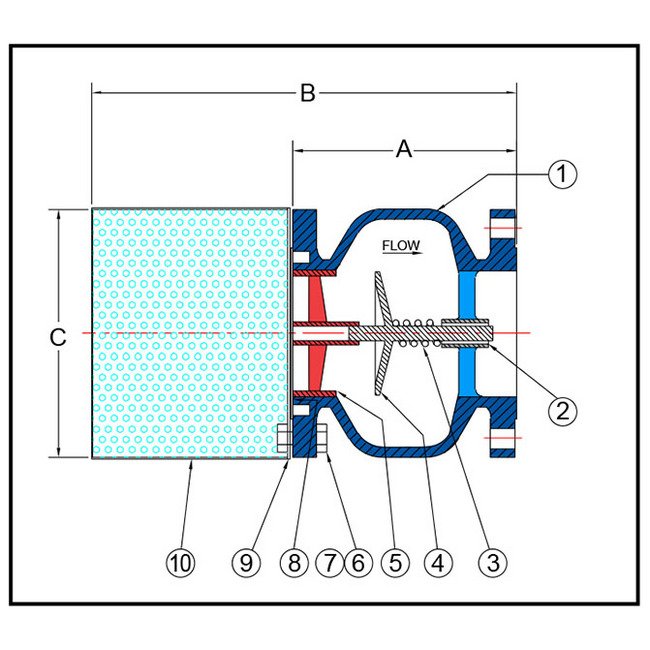

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
24 3/4 in
Dimensions Dimension B
34 1/4 in
Dimensions Dimension C
23 3/4 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
1,420 lb
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
3,440
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
