Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve
Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve
SKU:DOU-6479b7
Ensure efficient, silent operation with the Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve. Compliant with ASME Class 125 & ISO 9001:2008 standards.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve
$2,199.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV125 20-Inch Cast Iron Silent Seat Foot Valve with Flanged End Connections offers low head loss with its full ported body and heavy-duty stainless steel basket screening, ensuring efficient operation. Featuring a Buna-N Quad Ring for 'drop-tight seating,' this foot valve maintains performance under higher pressure ranges without seal damage. Compliant with ASME Class 125 and ISO 9001:2008 standards, it comes with a 1/8' perf. Stainless Steel Screen as a standard feature. Its construction ensures silent operation, positive shut-off, and durability, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

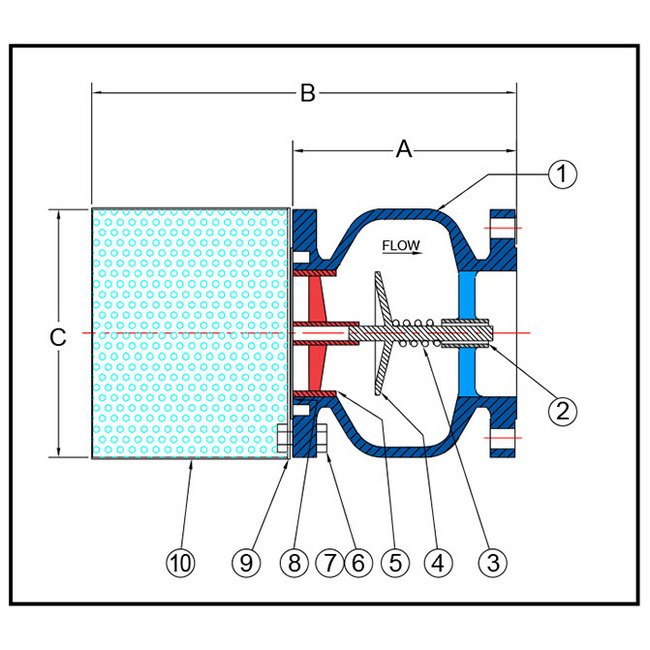

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
24 in
Dimensions Dimension B
39 1/2 in
Dimensions Dimension C
27 3/4 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
1,989 lb
Dimensions Size
20 in
Dimensions Valve Flow Coefficient Cv
5,675
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
