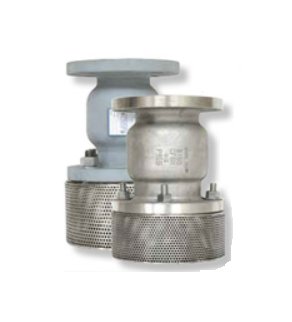

Sure Flow FV125 24 Inch Cast Iron Silent Seat Foot Valve
Sure Flow FV125 24 Inch Cast Iron Silent Seat Foot Valve
SKU:DOU-94ddb7
Discover reliable and silent Sure Flow FV125 24in Cast Iron Foot Valve for precise shut-off under high pressures.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FV125 24 Inch Cast Iron Silent Seat Foot Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV125 24 Inch Cast Iron Silent Seat Foot Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV125 24 Inch Cast Iron Silent Seat Foot Valve with Flanged End Connections offers exceptional performance with low head loss, heavy-duty stainless steel screening, and a Buna-N Quad Ring for drop-tight seating even at high pressures. Designed for durability, this foot valve ensures positive shut-off at all pressure ranges without additional loading on the seal. With compliance to ASME Class 125 and ISO 9001:2008 standards, this valve guarantees reliable operation and silent functionality, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Construction Construction

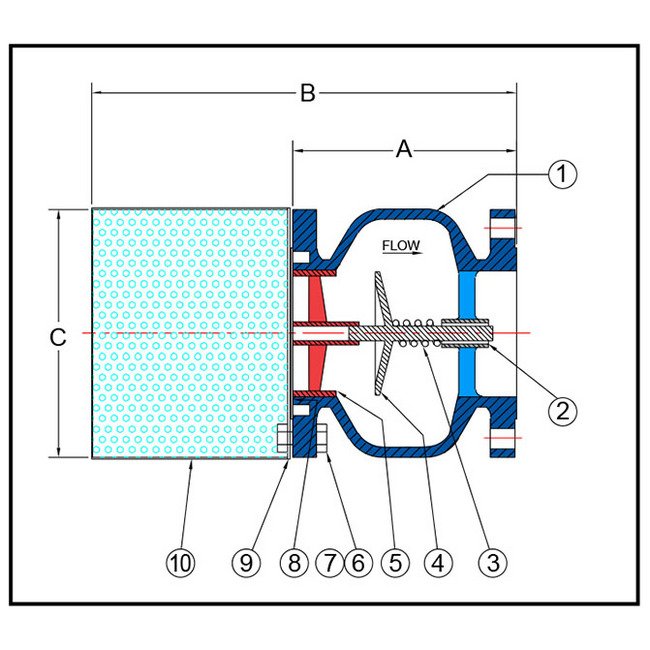

Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
24 in
Dimensions Dimension B
41 1/2 in
Dimensions Dimension C
32 1/4 in
Dimensions Prefix Size
2400
Dimensions Shipping Weight
4,480 lb
Dimensions Size
24 in
Dimensions Valve Flow Coefficient Cv
8,450
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
