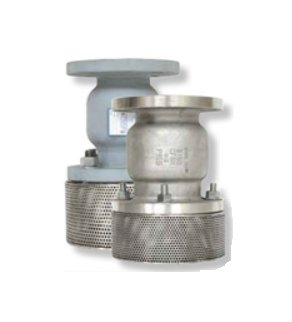

The Sure Flow FV125 6 Inch Silent Seat Foot Valve offers exceptional performance with low head loss and a heavy-duty stainless steel basket. Featuring a Buna-N Quad Ring for drop-tight seating under high pressures, this valve ensures superior shut-off without compromising the seal. With ASME Class 125 and ISO 9001:2008 certifications, this cast iron foot valve meets rigorous industry standards. Its silent operation, along with a standard 1/8" perf. Stainless Steel Screen, makes it a reliable choice for both consumer and institutional applications.
Product Specifications
Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
10 1/2 in
Dimensions Dimension B
15 1/2 in
Dimensions Dimension C
11 1/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
153 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
484
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
