Sure Flow FV150 10" Cast Steel Silent Seat Foot Valve with Flanged End
Sure Flow FV150 10" Cast Steel Silent Seat Foot Valve with Flanged End
SKU:DOU-1be88d
Experience drop-tight sealing with Sure Flow's FV150 10" Cast Steel Foot Valve for high-pressure systems.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FV150 10" Cast Steel Silent Seat Foot Valve with Flanged End
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150 10" Cast Steel Silent Seat Foot Valve with Flanged End
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150 10-inch Cast Steel Silent Seat Foot Valve with Flanged End Connections is designed to minimize head loss and ensure drop-tight seating at high pressures. Featuring a heavy-duty stainless steel screen and a Buna-N Quad Ring for optimal sealing, this foot valve offers silent operation and reliable performance. With a Cv of 1,360 and ASME Class 125 and ISO 9001:2008 certifications, this valve exceeds industry standards for durability and efficiency. The construction includes a robust body, disc, and spring for long-lasting use in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

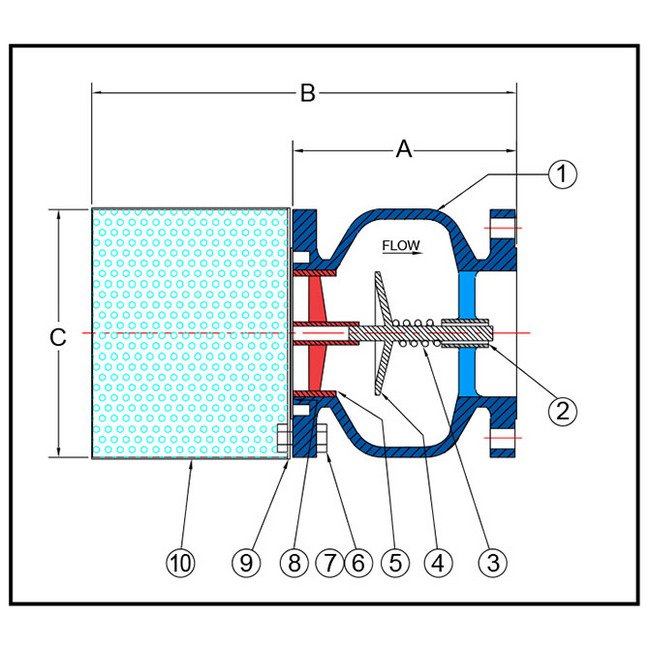

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
14 in
Dimensions Dimension B
18 3/4 in
Dimensions Dimension C
16 1/4 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
340 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,360
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
