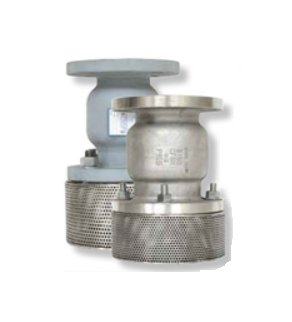

Sure Flow FV150 16 Inch Cast Steel Silent Seat Foot Valve
Sure Flow FV150 16 Inch Cast Steel Silent Seat Foot Valve
SKU:DOU-429586
Sure Flow FV150 16 Inch Cast Steel Foot Valve with Flanged End Connections - ASME Class 125 | ISO 9001:2008 certified for optimal performance
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FV150 16 Inch Cast Steel Silent Seat Foot Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150 16 Inch Cast Steel Silent Seat Foot Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150 16 Inch Cast Steel Silent Seat Foot Valve with Flanged End Connections is engineered for low head loss and reliable performance. Featuring a heavy-duty stainless steel screen and drop-tight Buna-N Quad Ring seal, it ensures optimal operation even at higher pressures. With ASME Class 125 and ISO 9001:2008 certifications, this foot valve provides exceptional shut-off capabilities without additional loading on the seal. Its construction includes a perforated stainless steel screen and a design that delivers silent operation for efficiency and longevity.
Product Specifications
Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Prefix Size
1600
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
3,440
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
