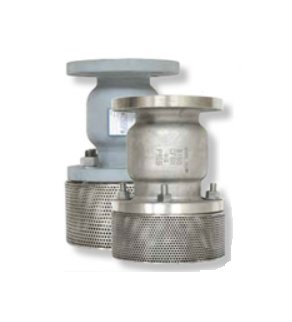

Sure Flow FV150 18" Cast Steel Silent Seat Foot Valve
Sure Flow FV150 18" Cast Steel Silent Seat Foot Valve
SKU:DOU-a70431
Sure Flow FV150 18" Silent Seat Foot Valve for reliable industrial shut-off with ASME Class 125 & ISO 9001:2008 certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FV150 18" Cast Steel Silent Seat Foot Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150 18" Cast Steel Silent Seat Foot Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150 18" Cast Steel Silent Seat Foot Valve with Flanged End Connections ensures low head loss and features a heavy-duty stainless steel basket screening. It boasts a Buna-N Quad Ring for drop-tight seating at higher pressure ranges without damage, making it ideal for industrial applications requiring reliable shut-off. With industry standards like ASME Class 125 and ISO 9001:2008 certification, this foot valve offers silent operation and durable construction for optimal performance.
Product Specifications
Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Prefix Size
1800
Dimensions Size
18 in
Dimensions Valve Flow Coefficient Cv
4,475
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
