Sure Flow FV150 2 1/2" Cast Steel Silent Seat Foot Valve
Sure Flow FV150 2 1/2" Cast Steel Silent Seat Foot Valve
SKU:DOU-a97d03
Reliable Sure Flow FV150 2 1/2" Foot Valve for low head loss applications. ASME Class 125 certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow FV150 2 1/2" Cast Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150 2 1/2" Cast Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150 2 1/2 Inch Cast Steel Silent Seat Foot Valve with Flanged End Connections is a robust solution for low head loss applications. Featuring heavy duty stainless steel basket screening and a Buna-N Quad Ring for drop-tight seating under high pressures, this foot valve ensures reliable operation. With a Valve Flow Coefficient (Cv) of 84 and ASME Class 125 and ISO 9001:2008 certifications, it meets stringent industry standards. The silent operation and positive shut-off design make it ideal for industrial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

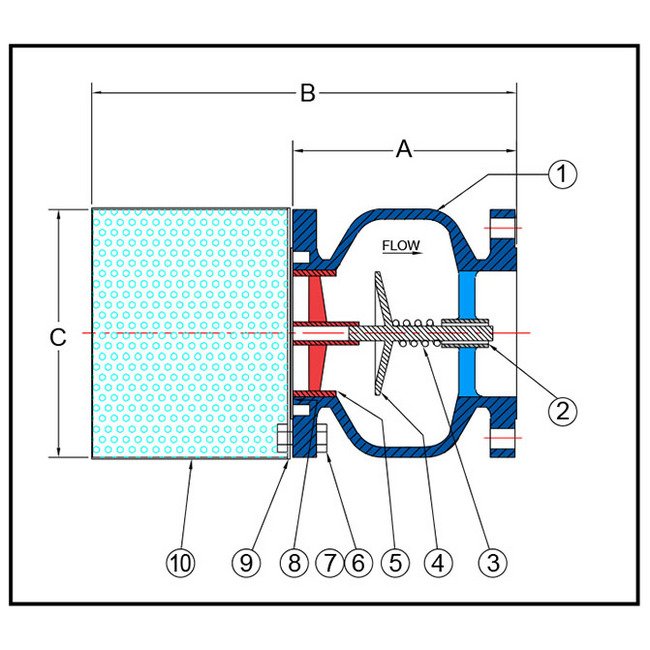

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
7 in
Dimensions Dimension B
10 in
Dimensions Dimension C
7 1/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
34 lb
Dimensions Size
2 1/2 in
Dimensions Valve Flow Coefficient Cv
84
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
