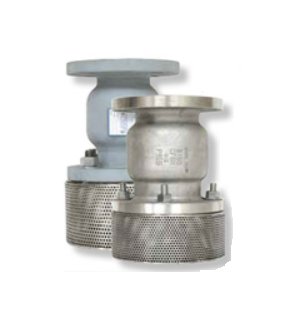

Sure Flow FV150 6" Cast Steel Silent Seat Foot Valve
Sure Flow FV150 6" Cast Steel Silent Seat Foot Valve
SKU:DOU-51d0a4
Ensure optimum flow control with the Sure Flow FV150 6" Cast Steel Silent Foot Valve. ASME Class 125 and ISO 9001:2008 compliant for enhanced performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow FV150 6" Cast Steel Silent Seat Foot Valve
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150 6" Cast Steel Silent Seat Foot Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150 6" Cast Steel Silent Seat Foot Valve offers exceptional performance with low head loss, heavy-duty stainless steel basket screening, and a Buna-N Quad Ring for drop-tight seating at high pressures. With a valve flow coefficient of 484, this product ensures reliable operation. Compliant with ASME Class 125 and ISO 9001:2008 standards, it features a full ported body area for efficient flow and silent operation.
Product Specifications

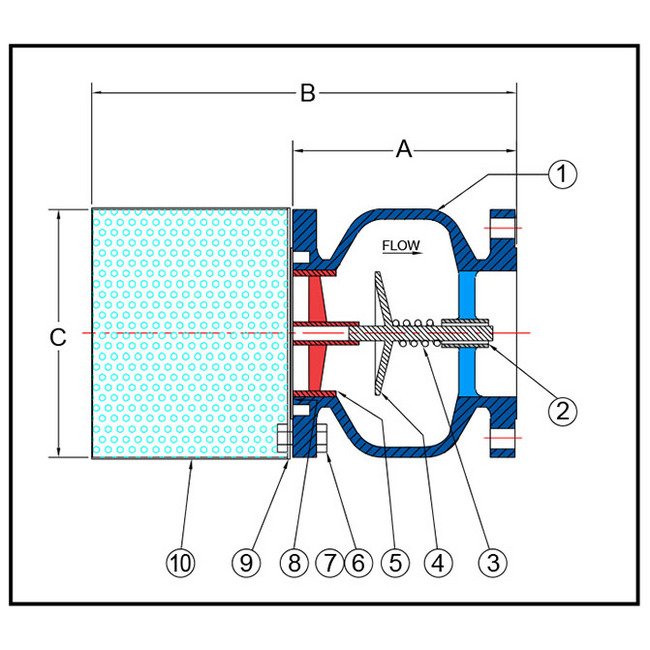

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
10 1/2 in
Dimensions Dimension B
15 1/2 in
Dimensions Dimension C
11 1/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
114 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
484
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
