Sure Flow FV150SS 14 Inch Cast Stainless Steel Silent Seat Foot Valve
Sure Flow FV150SS 14 Inch Cast Stainless Steel Silent Seat Foot Valve
SKU:DOU-1594ac
Sure Flow FV150SS 14" Cast Stainless Steel Foot Valve for low head loss and silent operation. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow FV150SS 14 Inch Cast Stainless Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150SS 14 Inch Cast Stainless Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150SS 14 Inch Cast Stainless Steel Silent Seat Foot Valve with Flanged End Connections is designed for low head loss and features a heavy-duty stainless steel basket screening for durability. The Buna-N Quad Ring ensures 'drop-tight seating' at higher pressure ranges without damage. This foot valve is silent in operation, with flow area designed for optimal performance. It meets industry standards such as ASME Class 125 and ISO 9001:2008.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

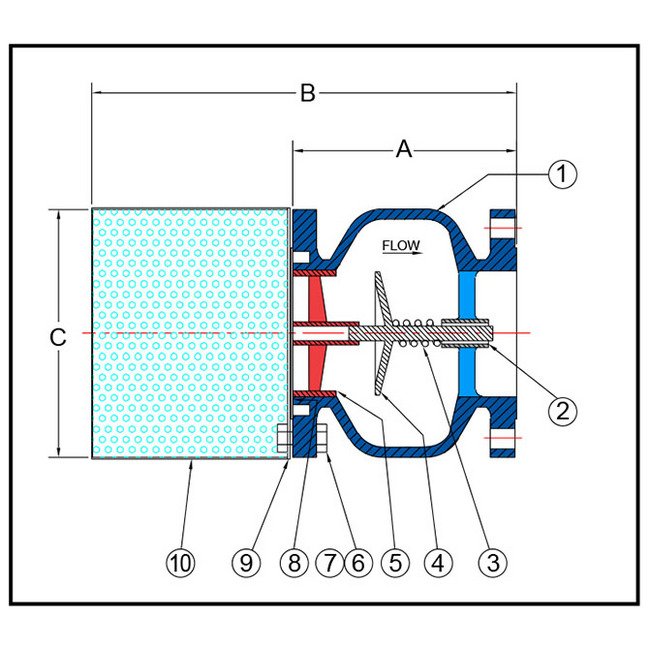

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Prefix Size
1400
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
2,680
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Specifications Material
Cast Stainless Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
