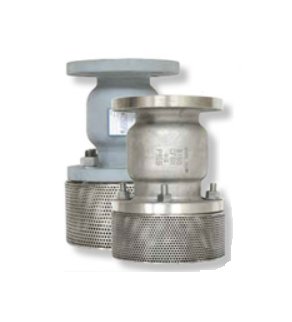

Sure Flow FV150SS 24 Inch Cast Stainless Steel Silent Seat Foot Valve with Flanged End Connections
Sure Flow FV150SS 24 Inch Cast Stainless Steel Silent Seat Foot Valve with Flanged End Connections
SKU:DOU-c20f14
The Sure Flow FV150SS 24 Inch Silent Seat Foot Valve delivers low head loss, drop-tight seating, and ASME Class 125 compliance.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
Sure Flow FV150SS 24 Inch Cast Stainless Steel Silent Seat Foot Valve with Flanged End Connections
$4,799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150SS 24 Inch Cast Stainless Steel Silent Seat Foot Valve with Flanged End Connections
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150SS 24 Inch Cast Stainless Steel Silent Seat Foot Valve provides low head loss with a full ported body area and heavy-duty stainless steel basket screening. Featuring a Buna-N Quad Ring for drop-tight seating, this foot valve ensures positive shut-off at all pressure ranges without additional loading on the seal. Compliant with ASME Class 125 and ISO 9001:2008 standards, it offers silent operation and comes with a 1/8" perf. Stainless Steel Screen as a standard feature.
Product Specifications
Construction Construction

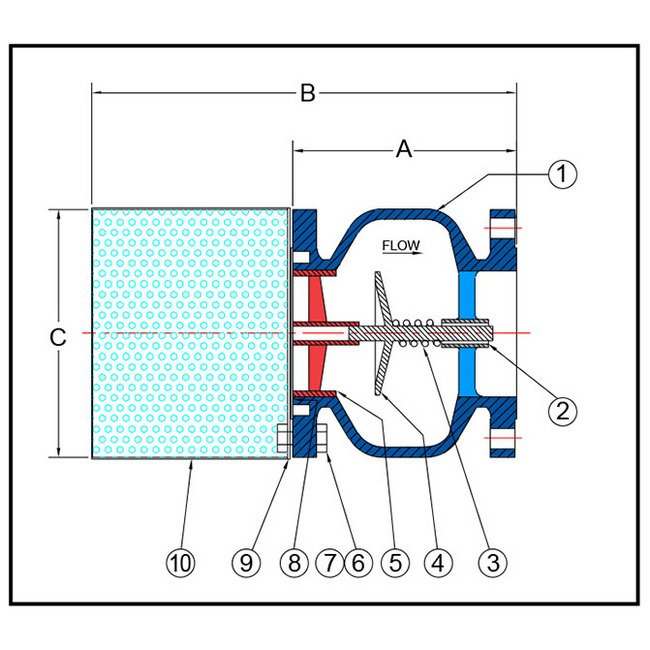

Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Prefix Size
2400
Dimensions Size
24 in
Dimensions Valve Flow Coefficient Cv
8,450
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Specifications Material
Cast Stainless Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
