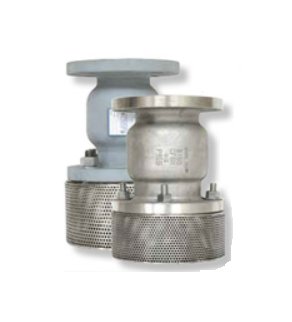

Sure Flow FV150SS 5-Inch Stainless Steel Silent Seat Foot Valve
Sure Flow FV150SS 5-Inch Stainless Steel Silent Seat Foot Valve
SKU:DOU-dcd06f
Experience superior flow control with the Sure Flow FV150SS Foot Valve
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FV150SS 5-Inch Stainless Steel Silent Seat Foot Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FV150SS 5-Inch Stainless Steel Silent Seat Foot Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150SS 5-Inch Stainless Steel Silent Seat Foot Valve with Flanged End Connections offers low head loss, heavy-duty stainless steel basket screening, and a Buna-N Quad Ring for drop-tight seating at higher pressures. Designed for use with basket strainers and check valves, this foot valve ensures positive shut-off across all pressure ranges without extra loading on the seal. Its construction includes a durable body, spring, disc, and more, meeting American Society of Mechanical Engineers (ASME) Class 125 and ISO 9001:2008 standards.
Product Specifications

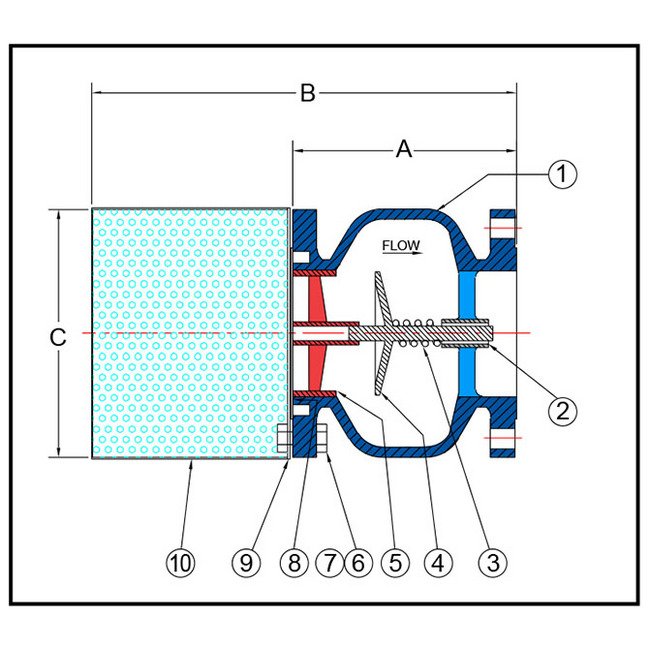

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Prefix Size
0500
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
344
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
