Sure Flow FV150SS Stainless Steel Silent Seat Foot Valve, 10 inch
Sure Flow FV150SS Stainless Steel Silent Seat Foot Valve, 10 inch
SKU:DOU-7e58b2
Sure Flow FV150SS 10" Stainless Steel Foot Valve: Low head loss, drop-tight seating, ASME Class 125 and ISO 9001:2008 compliant.
Regular price
$499.00
Regular price
Sale price
$499.00
Unit price
per
Initiate Order
Sure Flow FV150SS Stainless Steel Silent Seat Foot Valve, 10 inch
$499.00
Quantity: 1
Claim Your Seller Account
Sure Flow FV150SS Stainless Steel Silent Seat Foot Valve, 10 inch
$499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FV150SS 10 Inch Cast Stainless Steel Silent Seat Foot Valve ensures low head loss with a full ported body area and heavy-duty stainless steel screening. Featuring a Buna-N Quad Ring that provides 'drop-tight seating' at high pressures, this foot valve guarantees positive shut-off without additional seal loading. Compliant with ASME Class 125 and ISO 9001:2008 standards, it boasts a Cv of 1,360, operating at up to 275 psi and offering silent operation for efficient performance. Ideal for use with basket strainers and check valves.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

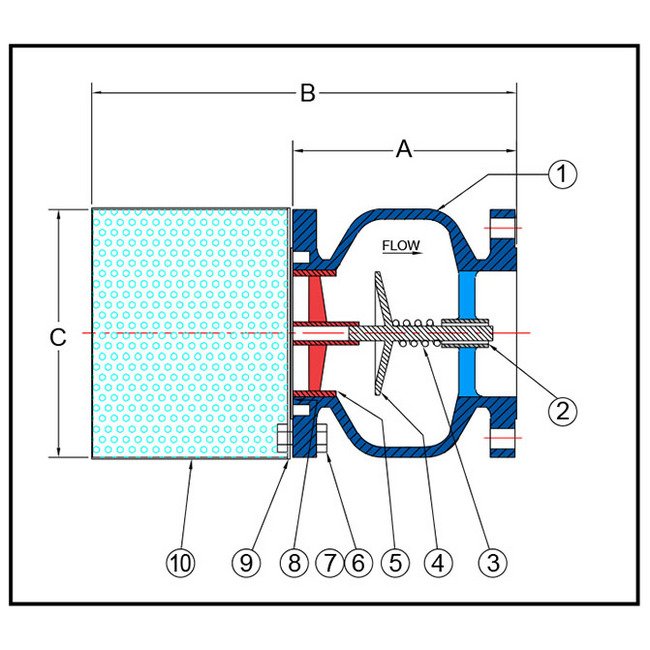

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
14 in
Dimensions Dimension B
18 3/4 in
Dimensions Dimension C
16 1/4 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
340 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,360
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
