Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

DOU-fe436a

Durable 14in swing foot valve with ASME Class 125 flanges for uninterrupted flow in municipal & industrial applications.

$499.99
$499.99
Sale

Initiate Order

Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

$499.99

Quantity: 1

Claim Your Seller Account

Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 14in Ductile Iron Swing Foot Valve

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FVCEXF125 14-inch Ductile Iron Swing Foot Valve with ASME Class 125 flanges is designed for municipal and industrial use. Epoxy coated internal body with optional special coatings available. Steel reinforced one-piece disc ensures 100% uninterrupted flow and easy maintenance. Suitable for horizontal or vertical installation, offering continuous flow performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

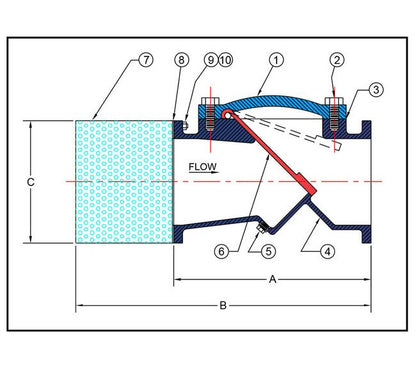

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
31 in
Dimensions Dimension B
39 1/2 in
Dimensions Dimension C
21 1/4 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
1,032 lb
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
5,280
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
