Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

DOU-c9b9eb

Reliable Sure Flow FVCEXF125 Swing Foot Valve for seamless flow control in municipal and industrial setups.

$299.99
$299.99
Sale

Initiate Order

Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

Sure Flow FVCEXF125 3-Inch Ductile Iron Swing Foot Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FVCEXF125 3-Inch Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is a robust solution for municipal and industrial applications. Featuring a durable epoxy-coated ductile iron body, ASME Class 125 flanges, and a one-piece molded disc with steel reinforced insert, this valve ensures reliable closure and 100% uninterrupted flow. Suitable for horizontal or vertical installation, it comes with a 1/8" pert. Stainless Steel Screen as standard, with customization options available upon request.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

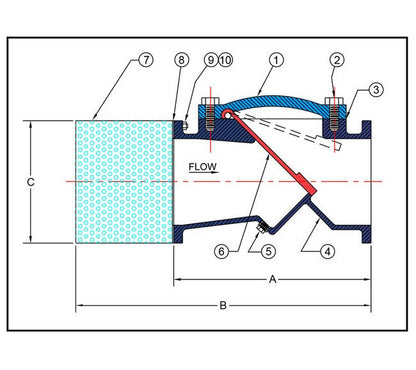

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
9 1/2 in
Dimensions Dimension B
12 in
Dimensions Dimension C
7 3/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
55 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
180
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
