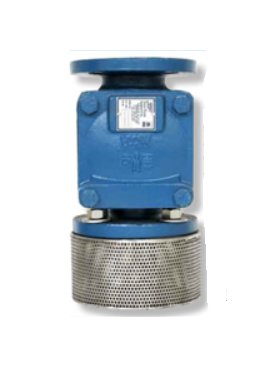

Sure Flow FVCEXF125 Ductile Iron Elastic Swing Foot Valve
Sure Flow FVCEXF125 Ductile Iron Elastic Swing Foot Valve
SKU:DOU-af1f15
Reliable Sure Flow FVCEXF125 Swing Foot Valve for continuous flow applications in municipal and industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow FVCEXF125 Ductile Iron Elastic Swing Foot Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow FVCEXF125 Ductile Iron Elastic Swing Foot Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FVCEXF125 2 Inch Ductile Iron Elastic Swing Foot Valve with ASME Class 125 flanges is ideal for municipal and industrial applications. With an epoxy-coated body and a steel-reinforced insert, this valve ensures reliable closure and 100% uninterrupted flow. It features a one-piece disc hinge and flapper for easy maintenance without removing the valve, suitable for continuous flow applications in both horizontal and vertical pipelines.
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction
Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
8 in
Dimensions Dimension B
10 1/2 in
Dimensions Dimension C
6 1/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
36 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
76
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
