Sure Flow FW150 24" Carbon Steel Fabricated Y Strainer
Sure Flow FW150 24" Carbon Steel Fabricated Y Strainer
SKU:FAB-86da2b
Reliable Sure Flow FW150 24" Carbon Steel Y Strainer for diverse applications, conforms to ASME standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

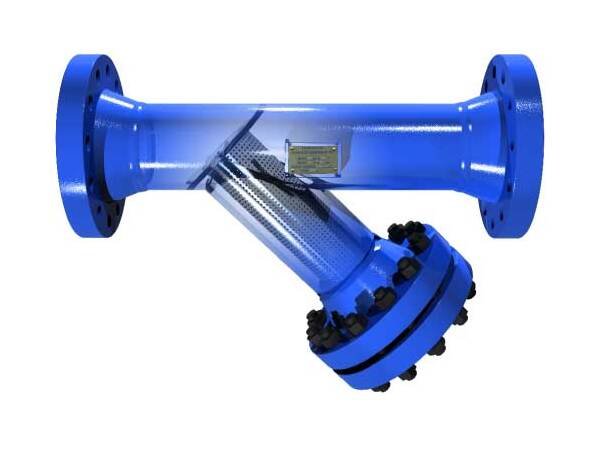

The Sure Flow FW150 24" Carbon Steel Fabricated Y Strainer is a robust solution designed for diverse applications. Constructed with precision in Carbon Steel, it offers exceptional durability and resistance. The strainer features Class 150 ASME flanges for reliable performance and can accommodate various pipe sizes and pressure ratings. With a tailored screen size to retain solids efficiently, it ensures prolonged operational efficiency. This product complies with ASME Section VIII, Div 1 standards, delivering quality and reliability with the U and UM CODE STAMP available.
Product Specifications

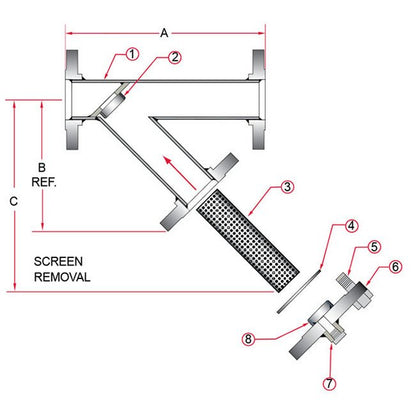

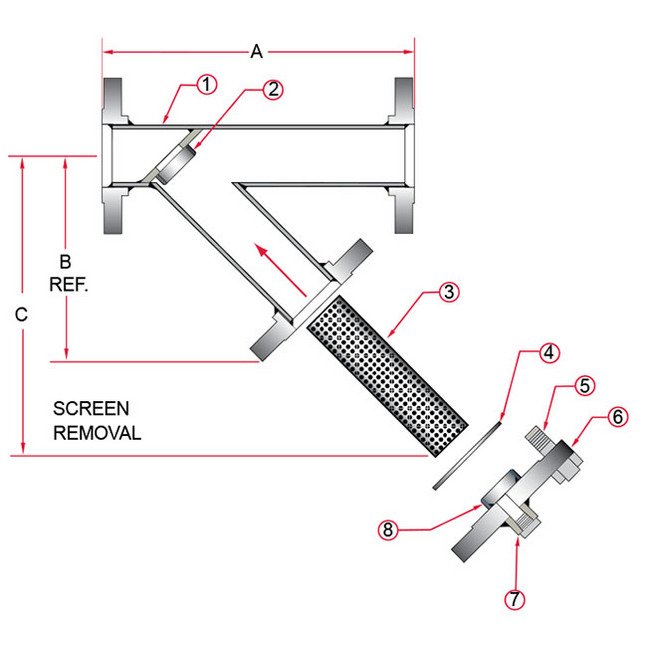

Construction Construction
Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
58 3/8 in
Dimensions Dimension B
44 in
Dimensions Dimension C
70 in
Dimensions Prefix Size
2400
Dimensions Size
24 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Connection Type
Fabricated
Specifications Material
Carbon Steel
Standard Screens Screen Opening
0.125 in
