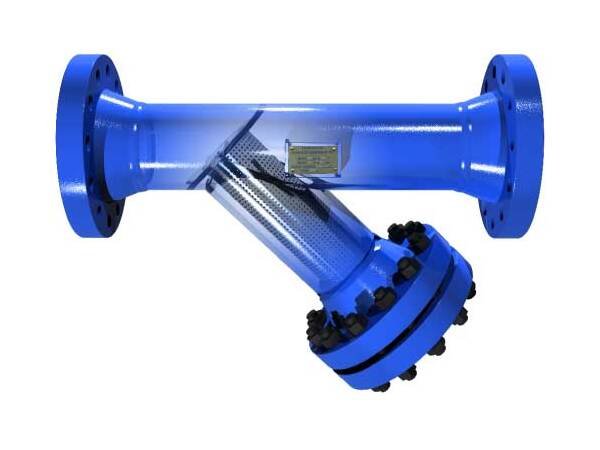

Sure Flow FW150 5" Carbon Steel Fabricated Y Strainer

Name: Sure Flow FW150 5" Carbon Steel Fabricated Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: FAB-4ba075
Price: 279.99 USD
Availability: OutOfStock

SKU:FAB-4ba075

Sure Flow FW150 5" Carbon Steel Y Strainer - ASME Compliant, Reliable Performance

$279.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FW150 5 Inch Carbon Steel Fabricated Y Strainer is built to meet your specific application needs with a durable carbon steel construction. This Y strainer, suitable for pipes ranging from 2" to 24" with Class 150 and Class 300 ASME flanges, offers adjustable screen sizes for optimal solid retention between clean-outs. With pressure ratings of 150 psi for steam and 285 psi for water, oil, and gas, it ensures reliable performance. Additionally, this strainer is designed with ASME Section VIII compliance and features a variety of construction components to enhance efficiency.

Product Specifications

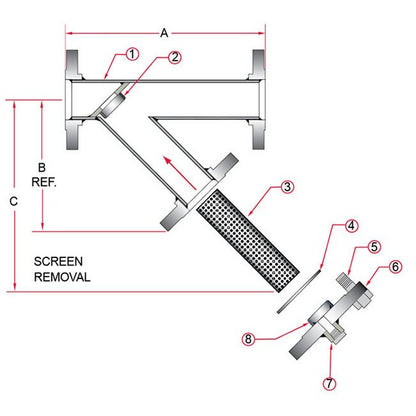

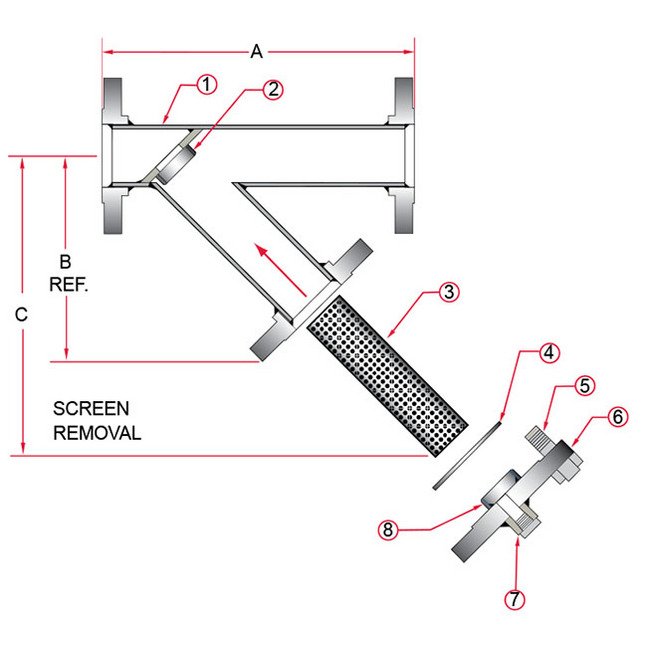

Construction Construction

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide

Dimensions Dimension A

18 in

Dimensions Dimension B

14 1/2 in

Dimensions Dimension C

21 in

Dimensions Prefix Size

0500

Dimensions Size

5 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Operating Pressures And Temperatures Pressure At 366 Degree Fahr

150 psi

Specifications Connection Type

Fabricated

Specifications Material

Carbon Steel

Standard Screens Screen Opening

0.125 in

Sure Flow FW150 5" Carbon Steel Fabricated Y Strainer
