Sure Flow FW150 Carbon Steel Fabricated Y Strainer - 20 inch

Name: Sure Flow FW150 Carbon Steel Fabricated Y Strainer - 20 inch
Brand: Sure Flow Equipment, Inc.
SKU: FAB-bac166
Price: 499.99 USD
Availability: OutOfStock

SKU:FAB-bac166

Highly durable Sure Flow FW150 20-inch Carbon Steel Fabricated Y Strainer for industrial applications with ASME compliance.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

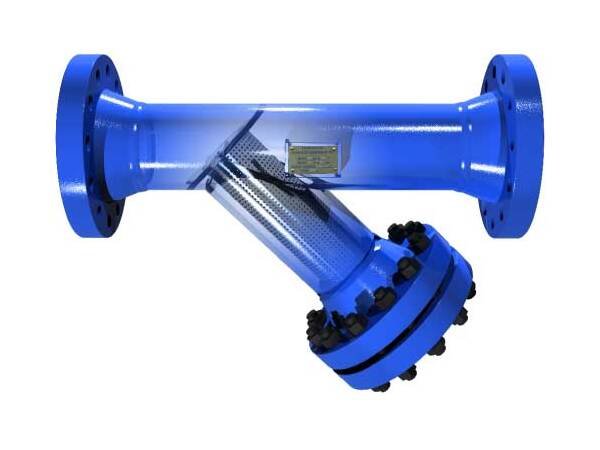

The Sure Flow FW150 Carbon Steel Fabricated Y Strainer in 20-inch size is a versatile solution designed for industrial applications. Built with high-quality carbon steel, this strainer offers superior durability and performance. With ASME Section VIII, Div 1 compliance, U and UM CODE STAMP availability, and adherence to ISO 9001:2008 standards, this Y strainer ensures reliable operation and quality filtration. Suitable for Class 150 and Class 300 ASME flanges, this strainer can be customized with different screen sizes to meet specific requirements, making it a dependable choice for various industries.

Product Specifications

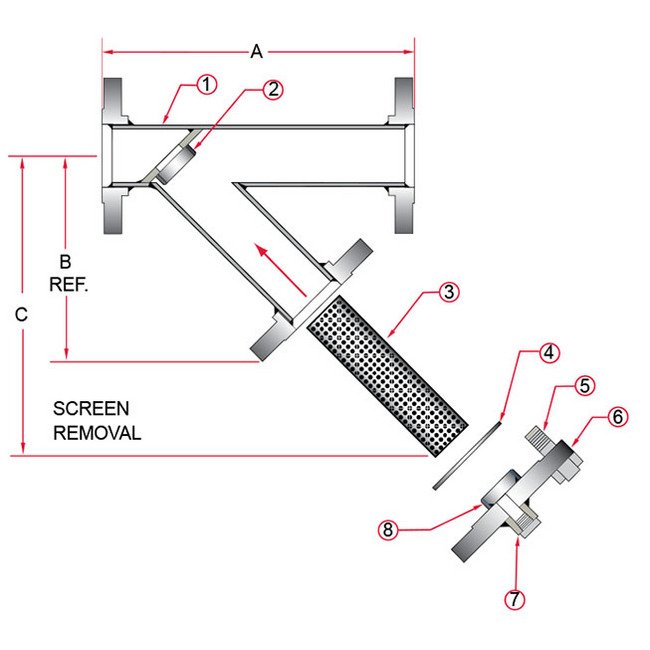

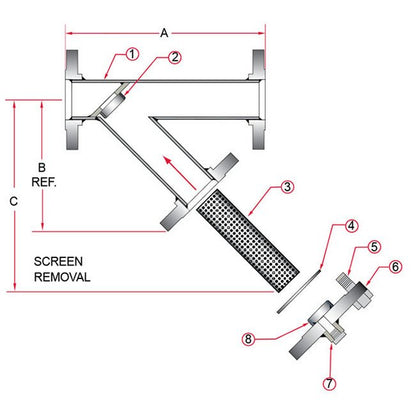

Construction Construction

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide

Dimensions Dimension A

49 1/2 in

Dimensions Dimension B

39 in

Dimensions Dimension C

61 in

Dimensions Prefix Size

2000

Dimensions Size

20 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Operating Pressures And Temperatures Pressure At 366 Degree Fahr

150 psi

Specifications Connection Type

Fabricated

Specifications Material

Carbon Steel

Standard Screens Screen Opening

0.125 in
