Sure Flow FW150SS 18 Inch Stainless Steel Fabricated Y Strainer

Name: Sure Flow FW150SS 18 Inch Stainless Steel Fabricated Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: FAB-53cb56
Price: 699.99 USD
Availability: OutOfStock

SKU:FAB-53cb56

Sure Flow FW150SS 18 Inch Stainless Steel Fabricated Y Strainer offers precise filtration and pressure control for reliable performance.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

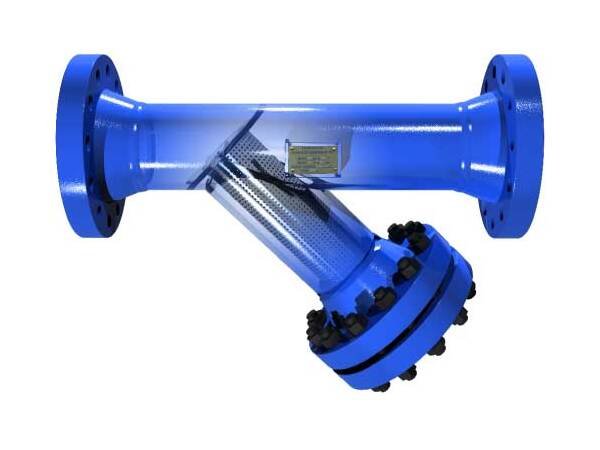

Enhance your piping systems with the Sure Flow FW150SS 18 Inch Stainless Steel Fabricated Y Strainer. Crafted from high-quality stainless steel, this Y strainer is customizable to meet specific application needs, offering ASME Class 150 and Class 300 flanges, tailored screen sizes, and optional hinge covers for quick access. Designed for durability and efficiency, it meets stringent industry standards including ISO 9001:2008 (Intertek), ensuring reliable performance in diverse settings. With robust construction and precise engineering, this Y strainer delivers exceptional filtration and pressure control, making it a preferred choice for both consumer and institutional applications.

Product Specifications

Construction Construction

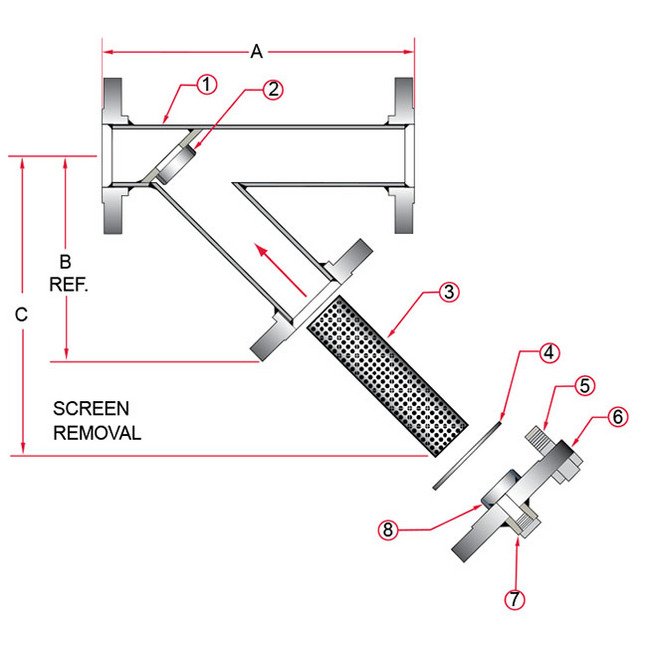

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide

Dimensions Dimension A

46 in

Dimensions Dimension B

35 in

Dimensions Dimension C

57 in

Dimensions Prefix Size

1800

Dimensions Size

18 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

275 psi

Operating Pressures And Temperatures Pressure At 366 Degree Fahr

150 psi

Specifications Connection Type

Fabricated

Specifications Material

Stainless Steel

Standard Screens Screen Opening

0.125 in

Sure Flow FW150SS 18 Inch Stainless Steel Fabricated Y Strainer
