Sure Flow FW150SS 6 Inch Stainless Steel Fabricated Y Strainer
Sure Flow FW150SS 6 Inch Stainless Steel Fabricated Y Strainer
SKU:FAB-52a23f
Enhance your system with Sure Flow FW150SS 6in Stainless Steel Y Strainer - ISO 9001:2008 certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FW150SS 6 Inch Stainless Steel Fabricated Y Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FW150SS 6 Inch Stainless Steel Fabricated Y Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

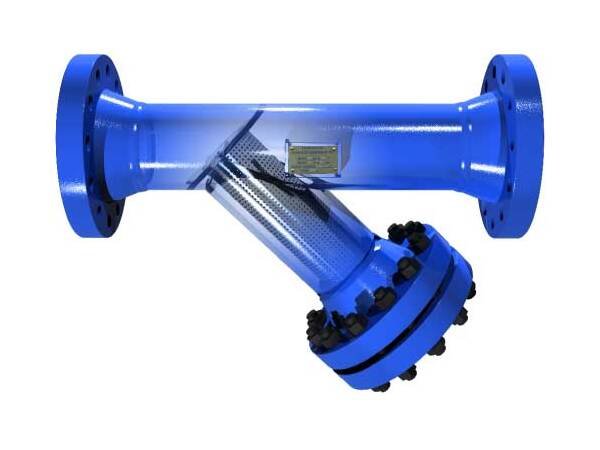

Upgrade your piping system with the Sure Flow FW150SS Fabricated Y Strainer. Crafted from durable Stainless Steel, this Y strainer is designed for precise applications in various industries. With ASME Class 150 and 300 flanges, this strainer ensures efficient performance even under high pressures. The 6-inch size and 0.125-inch screen opening are optimized to capture solids, while the International Organization for Standardization (ISO) 9001:2008 certification guarantees quality and reliability. Trust Sure Flow for seamless integration and superior filtration in your piping setup.
Product Specifications

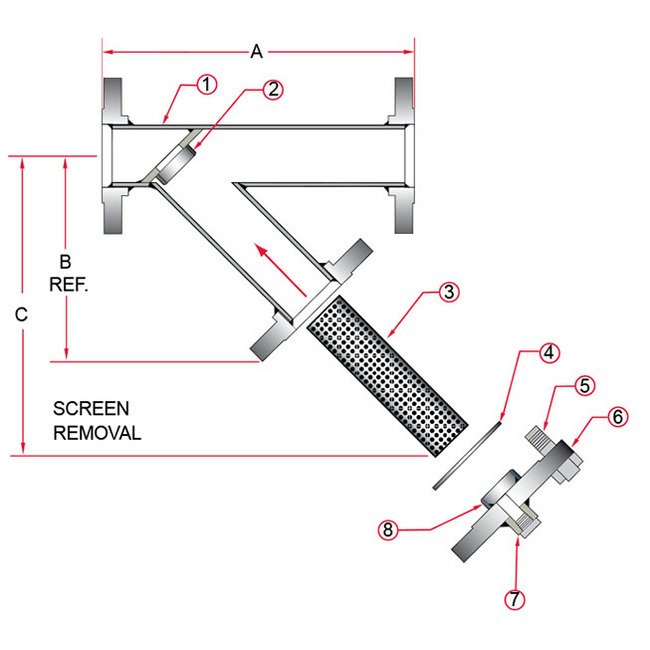

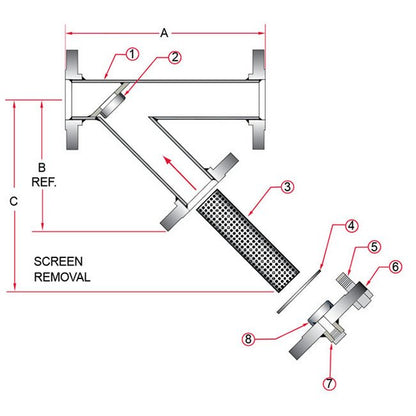

Construction Construction
Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
24 in
Dimensions Dimension B
16 in
Dimensions Dimension C
23 in
Dimensions Prefix Size
0600
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
