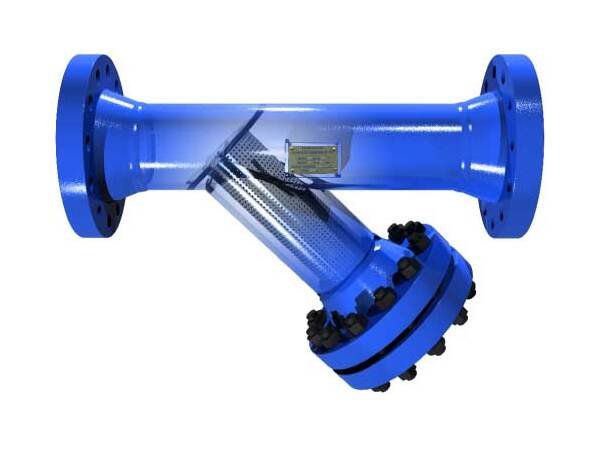

Sure Flow FW300 5 Inch Carbon Steel Fabricated Y Strainer

Name: Sure Flow FW300 5 Inch Carbon Steel Fabricated Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: FAB-a51910
Price: 699.99 USD
Availability: OutOfStock

SKU:FAB-a51910

Efficient and reliable Sure Flow FW300 5" Carbon Steel Y Strainer for industrial applications.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FW300 5 Inch Carbon Steel Fabricated Y Strainer is meticulously designed for precise industrial applications. Crafted from high-grade carbon steel, this Y strainer is built to withstand demanding conditions with exceptional efficiency. Offering sizes ranging from 2" to 24" in Class 150 and Class 300 ASME flanges, it ensures optimal performance even in high-pressure scenarios. The standard screen with a 0.125-inch opening guarantees efficient filtration, enhanced by customizable screen sizes to accommodate varying solids. With ASME Section VIII, Div 1 compliance, this Y strainer ensures reliability and safety in operation, adhering to the strictest industry standards.

Product Specifications

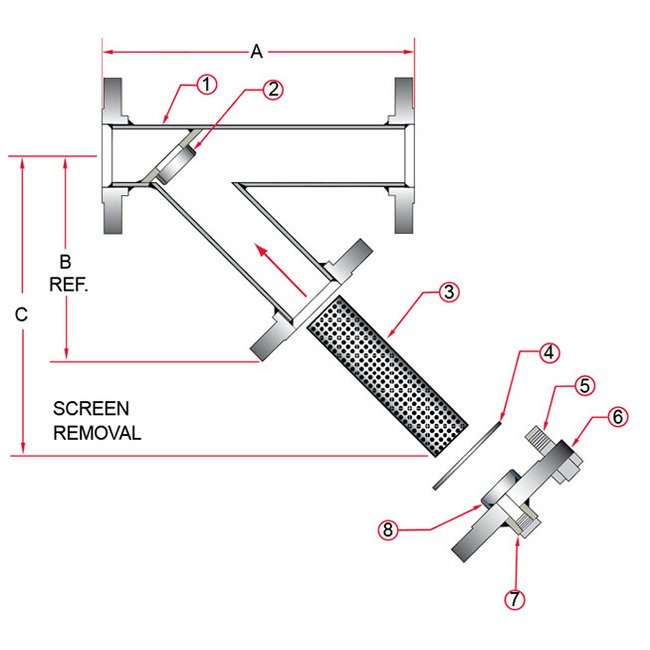

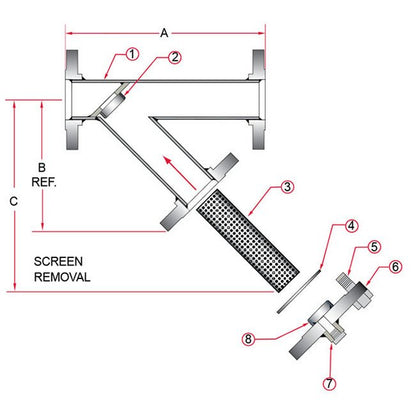

Construction Construction

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide

Dimensions Dimension A

18 in

Dimensions Dimension B

14 1/2 in

Dimensions Dimension C

21 in

Dimensions Prefix Size

0500

Dimensions Size

5 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

740 psi

Operating Pressures And Temperatures Pressure At 422 Degree Fahr

300 psi

Specifications Connection Type

Fabricated

Specifications Material

Carbon Steel

Standard Screens Screen Opening

0.125 in

Sure Flow FW300 5 Inch Carbon Steel Fabricated Y Strainer
