Sure Flow FW300SS 20-Inch Stainless Steel Fabricated Y Strainer
Sure Flow FW300SS 20-Inch Stainless Steel Fabricated Y Strainer
SKU:FAB-097672
High-quality 20-inch stainless steel Y strainer for efficient filtration in various applications. ASME Section VIII certified & ISO 9001:2008 compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow FW300SS 20-Inch Stainless Steel Fabricated Y Strainer
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FW300SS 20-Inch Stainless Steel Fabricated Y Strainer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

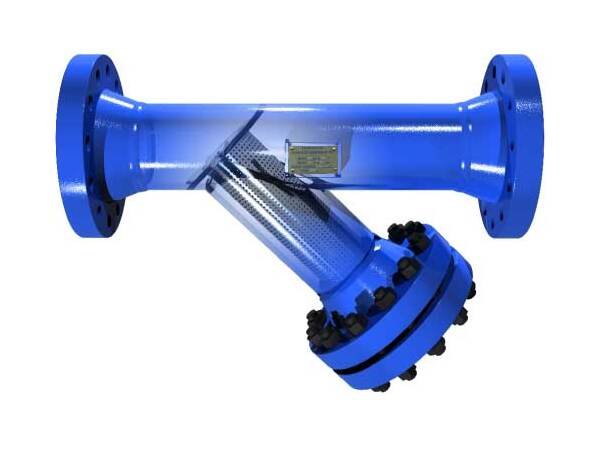

The Sure Flow FW300SS 20-Inch Stainless Steel Fabricated Y Strainer is a versatile solution crafted from high-grade stainless steel, suitable for a wide range of applications. With ASME Section VIII, Div 1 certification and adherence to ISO 9001:2008 standards, this Y strainer offers exceptional durability and performance. Featuring a 0.125-inch screen opening and operating pressures of 300 psi at 422°F for steam and 720 psi at 100°F for water, oil, and gas, this strainer ensures efficient filtration and robust functionality. Ideal for Class 150 and Class 300 ASME flanges, with customization options for larger sizes and higher pressure ratings.
Product Specifications

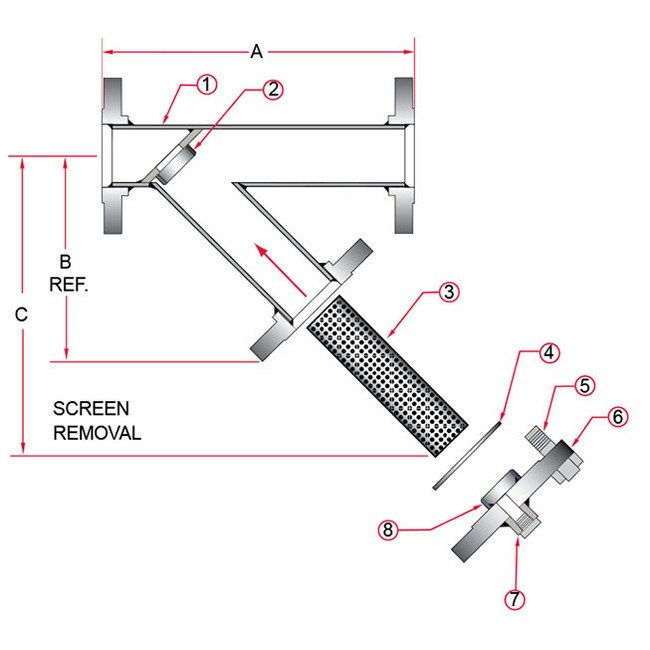

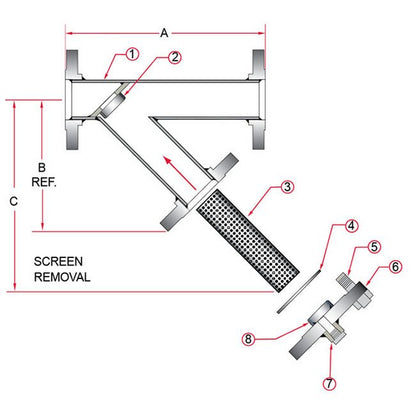

Construction Construction
Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
49 1/2 in
Dimensions Dimension B
39 in
Dimensions Dimension C
61 in
Dimensions Prefix Size
2000
Dimensions Size
20 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
