Sure Flow FW300SS 4 Inch Stainless Steel Fabricated Y Strainer
Sure Flow FW300SS 4 Inch Stainless Steel Fabricated Y Strainer
SKU:FAB-206895
Reliable Sure Flow 4 Inch Stainless Steel Y Strainer with ASME Compliance and Tailored Screen Sizes.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FW300SS 4 Inch Stainless Steel Fabricated Y Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FW300SS 4 Inch Stainless Steel Fabricated Y Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

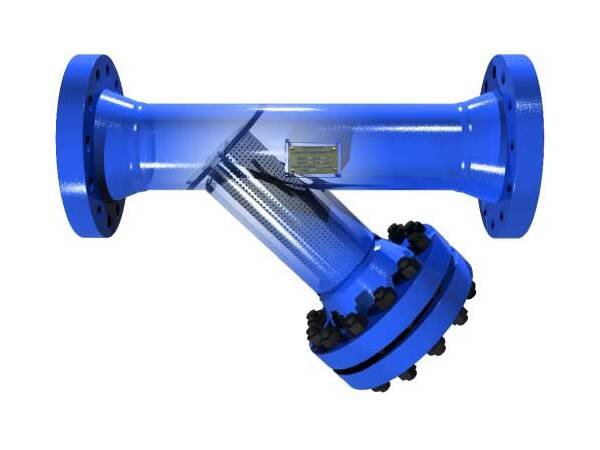

The Sure Flow FW300SS 4 Inch Stainless Steel Fabricated Y Strainer is a robust solution designed for precise applications. Constructed with high-grade stainless steel, this Y strainer offers durability and reliability. With ASME Section VIII, Div 1 compliance, featuring a U and UM CODE STAMP, it ensures quality and safety. Suitable for pipe sizes 2" to 24" in Class 150 and Class 300 ASME flanges and tailored screen sizes, this strainer effectively manages solids with ease.
Product Specifications
Construction Construction

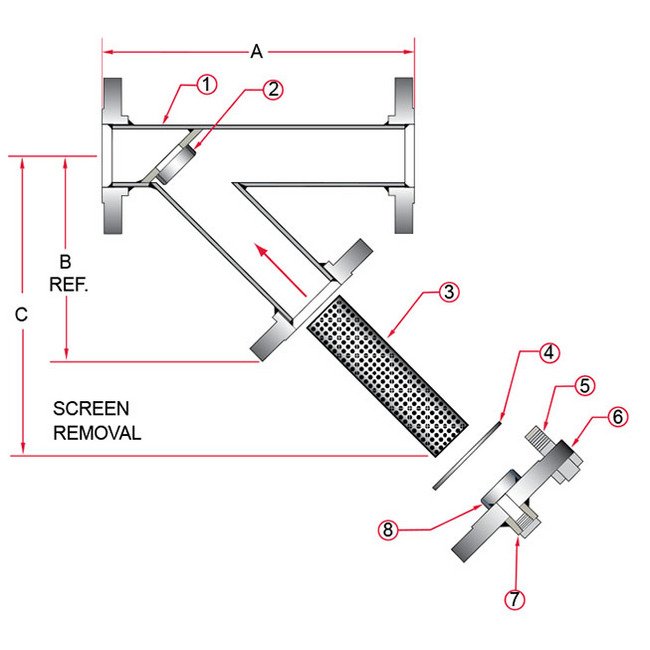

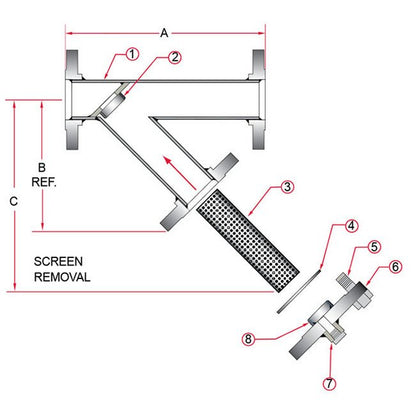

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
18 in
Dimensions Dimension B
13 in
Dimensions Dimension C
18 in
Dimensions Prefix Size
0400
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
