Sure Flow FW300SS Stainless Steel Y Strainer 2 1/2in
Sure Flow FW300SS Stainless Steel Y Strainer 2 1/2in
SKU:FAB-28a05b
Sure Flow FW300SS 2 1/2in Stainless Steel Y Strainer. ASME Class 300, 720 psi. ISO 9001:2008 compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow FW300SS Stainless Steel Y Strainer 2 1/2in
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow FW300SS Stainless Steel Y Strainer 2 1/2in
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

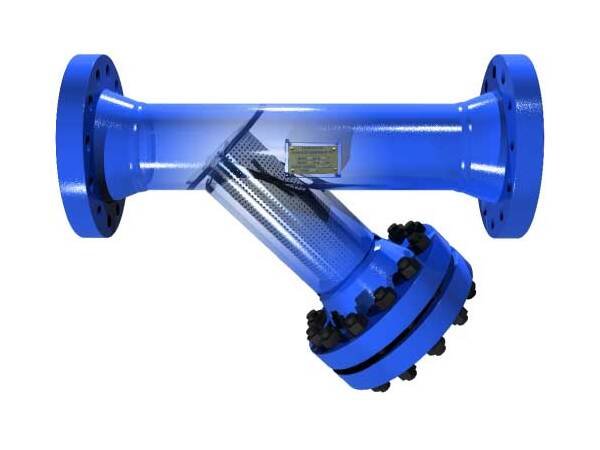

The Sure Flow FW300SS 2 1/2 Inch Stainless Steel Fabricated Y Strainer is a versatile solution for various applications. Constructed with high-quality stainless steel, this strainer offers durability and reliability. With ASME Class 300 flanges, it can handle pressures up to 720 psi for water, oil, and gas. The 0.125-inch standard screen ensures effective filtration, while the customizable design allows for tailored solutions to meet specific requirements. Compliant with ISO 9001:2008 standards, this strainer guarantees quality and performance.
Product Specifications

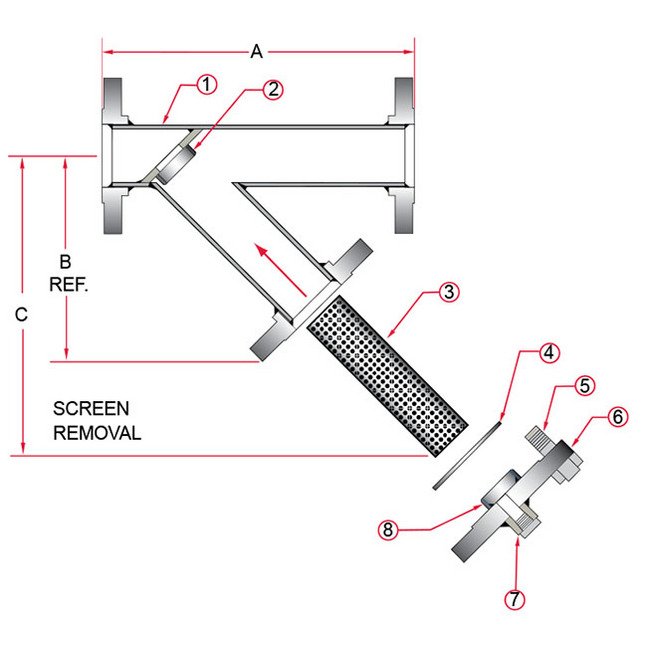

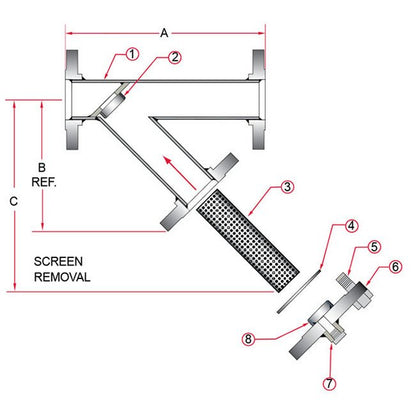

Construction Construction
Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
13 in
Dimensions Dimension B
10 in
Dimensions Dimension C
14 in
Dimensions Prefix Size
0250
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
