Sure Flow FW600SS 2 Inch Stainless Steel Fabricated Y Strainer

Name: Sure Flow FW600SS 2 Inch Stainless Steel Fabricated Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: FAB-0d9b33
Price: 249.99 USD
Availability: OutOfStock

SKU:FAB-0d9b33

Sure Flow Stainless Steel 2in Fabricated Y Strainer, ASME Sec VIII, 600psi @489°F, ISO 9001:2008 Cert

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FW600SS 2 Inch Stainless Steel Fabricated Y Strainer is a reliable solution for efficient filtration in industrial settings. This Y strainer is ASME Section VIII, Div 1 certified, with a Code Stamp available. Constructed from high-grade stainless steel, it offers exceptional resistance to corrosion and withstands operating pressures of 600 psi at 489°F steam temperature. The 0.125-inch screen opening ensures fine filtration, meeting the International Organization for Standardization (ISO) 9001:2008 certification.

Product Specifications

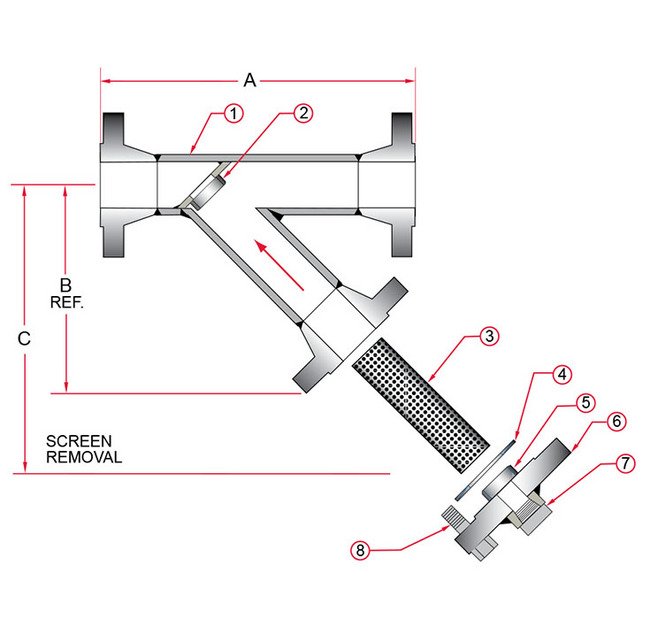

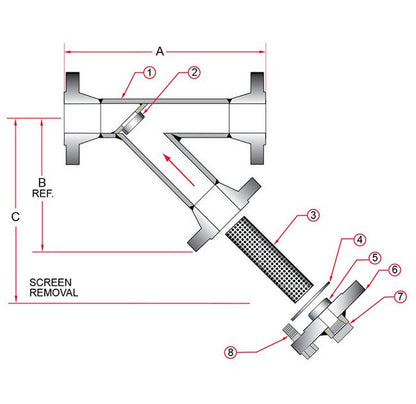

Dimensions Dimension A

16 in

Dimensions Dimension B

14 in

Dimensions Dimension C

19 in

Dimensions Prefix Size

0200

Dimensions Size

2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 489 Degree Fahr

600 psi

Specifications Connection Type

Fabricated

Specifications Material

Stainless Steel

Standard Screens Screen Opening

0.125 in

Sure Flow FW600SS 2 Inch Stainless Steel Fabricated Y Strainer
