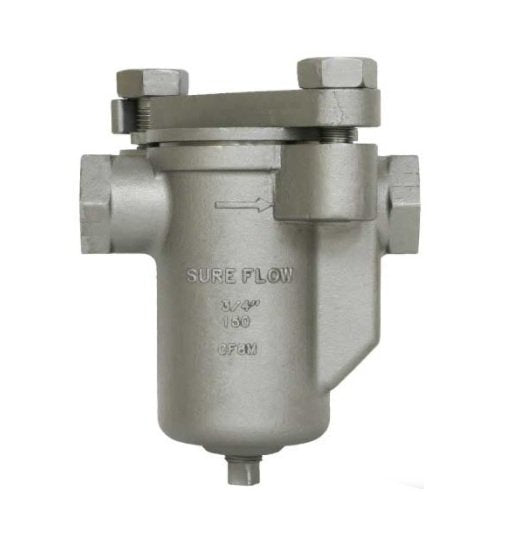

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

SKU:BAS-d55e4d

Efficiently capture and remove solid particulates with the Sure Flow NPT 1" Stainless Steel Basket Strainer. Swivel Clamp Cover for easy maintenance. ISO 9001:2008 compliant.

Regular price $289.99
Regular price Sale price $289.99
Sale

Initiate Order

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

$289.99

Quantity: 1

Claim Your Seller Account

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow NPT 1" Stainless Steel Simplex Basket Strainer is designed for applications with high solid particulate loads, ensuring easy removal and disposal of captured particles. Featuring a Swivel Clamp Cover for tool-free screen removal, it boasts ASTM A351 Grade CF8M stainless steel construction. With a pressure rating of 275 psi at 100°F, perforated standard screen, and ISO 9001:2008 compliance, this basket strainer offers efficiency and durability in demanding environments.

Product Specifications

Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

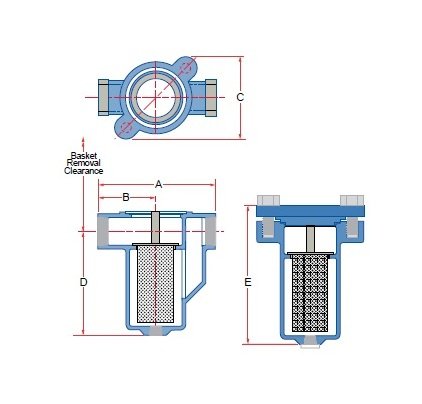

Dimensions Basket Removal Clearance
6 1/2 in
Dimensions Dimension A
6 7/8 in
Dimensions Dimension B
3 5/16 in
Dimensions Dimension C
5 7/16 in
Dimensions Dimension D
5 1/4 in
Dimensions Dimension E
7 5/8 in
Dimensions Drain Size
1/2 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
18 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
