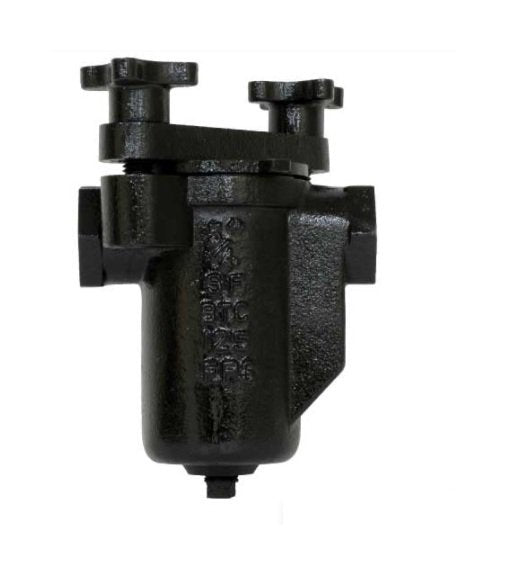

Sure Flow NPT 3/4" Cast Iron Simplex Basket Strainer
Sure Flow NPT 3/4" Cast Iron Simplex Basket Strainer
SKU:BAS-3076c8
Efficiently capture particulate matter with Sure Flow NPT 3/4" Cast Iron Basket Strainer. Swivel Clamp Cover for tool-free maintenance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Sure Flow NPT 3/4" Cast Iron Simplex Basket Strainer
$149.99
Quantity: 1
Claim Your Seller Account
Sure Flow NPT 3/4" Cast Iron Simplex Basket Strainer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow NPT 3/4" Cast Iron Simplex Basket Strainer is designed for applications with high solid particulate content, enabling easy screen removal and cleaning. Featuring a Swivel Clamp Cover with Buna-N O-ring seals, this strainer ensures fast maintenance without gasket replacements. Constructed with ASTM A126 Class B Cast Iron body and Stainless Steel screen, it operates at 200 psi and meets ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

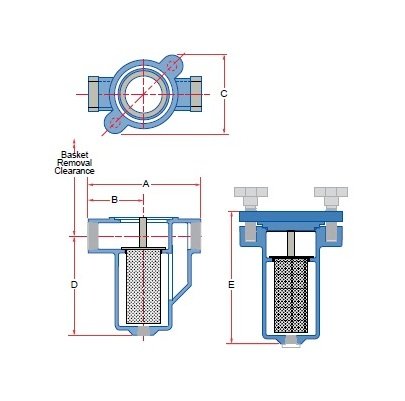

Dimensions Basket Removal Clearance
6 1/2 in
Dimensions Dimension A
6 7/8 in
Dimensions Dimension B
3 5/16 in
Dimensions Dimension C
5 7/16 in
Dimensions Dimension D
5 1/4 in
Dimensions Dimension E
7 5/8 in
Dimensions Drain Size
1/2 in
Dimensions Prefix Size
0075
Dimensions Shipping Weight
18 lb
Dimensions Size
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
