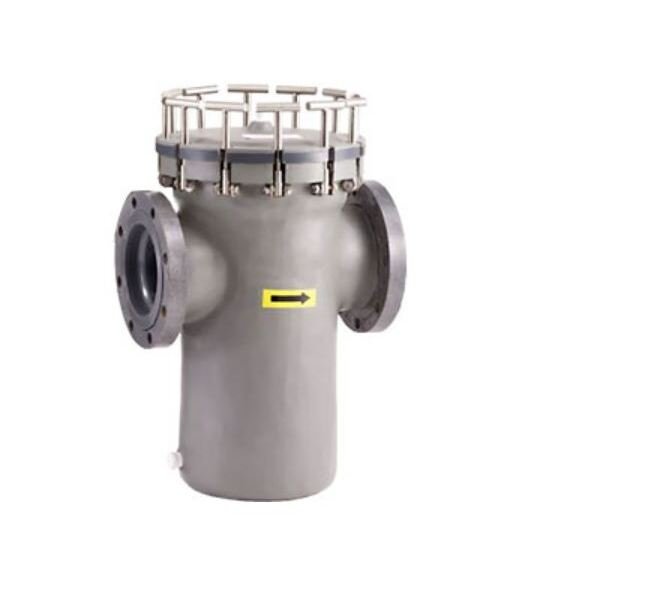

The Sure Flow P-Series 14-inch Fiberglass Reinforced Plastic (FRP) Strainer is designed for maximum corrosion resistance in moderate to aggressive environments. Constructed with premium resins Derakane 411 or Hetron 922, this strainer offers exceptional durability. The basket type strainer features a PVDF basket with 1/8" perforations on 3/16" centers, ensuring efficient filtration. Certified to industry standards RTP-1/Sec X, ASTM B31.3, and more, this strainer is ideal for chemical piping systems requiring robust corrosion, pressure, and temperature resistance.
Product Specifications
Construction Construction
Strainer body shall be of filament wound construction, for sizes 12" and lower. Larger sizes may be hand lay up construction in accordance with PS-15-669.Resin shall be Vinyl Ester. Derakane 411 or Hetron 922, or equal.Body shall contain a chemical barrier, 10 mils nexus, 90 % resin, 10 % reinforcementAnti-wicking barrier, 100 mils chopped strand glass, 70 % resin to 30 % glass shall be provided.Structural layer shall be filament wound continuous roving, 30 % resin to 70 % glass.Exterior protection is unsaturated polyester resin based high quality gel coat- 10 mils min.
Design Design
Strainer shall be flanged basket (or Y) type.Body configuration shall be (select one)In-lineOffsetAngled offsetBoot. Basket shall be PVDF, Perforations 1/8" on 3/16" centers (or as required)Minimum area ratio of pipe to basket shall be 10 to 1.All strainers shall be furnished with minimum 1/2" flanged drain.Cover shall be FRP with optional 1/2" vent tap.Flanges shall be contact molded.Strainer shall be rated for 150 psi at 180 deg ºFStrainer design shall conform to ASME code for non-metallic pressure vessels.Vendor shall supply min 5 years service history of applications in similar service.

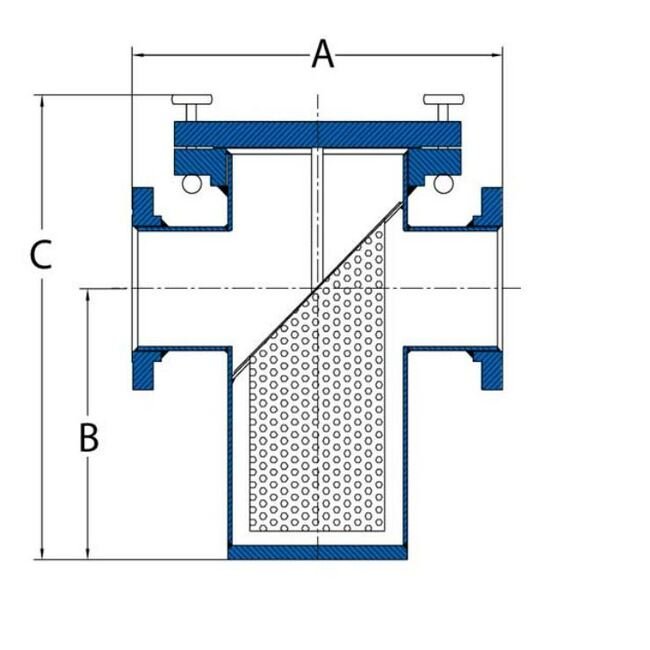

Dimensions For Inline Configuration Dimension A
35 in
Dimensions For Inline Configuration Dimension B
32 1/2 in
Dimensions For Inline Configuration Dimension C
49 in
Dimensions For Inline Configuration Size
14 in
Industry Standardscertifications Industry Standardscertification
All products shall conform to or exceed the specifications as set forth in the following standards.RTP-1/Sec XASTM B31.3/Sec 15BS1 BS 6464GSB 41-GP-22 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Material Features Material Features
Integral abrasion resistant linerResistant to chlorides and fluorides Joining with Tapered Adhesive and Butt & Wrap joints U.V. protected Optional fire retardant resins
Note Note
Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Scope Scope
This specification covers requirements for frp strainers. Y type, basket type and duplex types are intended for use in chemical piping systems where maximum resistance to corrosion, pressure and temperature is required.
Specifications Material
Fiberglass Reinforced Plastic (FRP)
Specifications Pressure Rating
50 to 150 psi
Specifications Series
P
Specifications Temperature Limitation
82 ºC | 180 ºF
