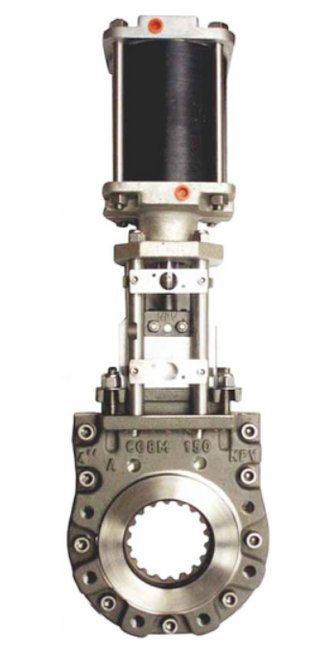

Sure Flow Scavenger Knife Gate Valve

Name: Sure Flow Scavenger Knife Gate Valve
Brand: Sure Flow Equipment, Inc.
SKU: KNI-169779
Price: 699.99 USD
Availability: OutOfStock

SKU:KNI-169779

Sure Flow Scavenger Knife Gate Valve: Bi-directional shutoff, hardened components, precision machined for industrial reliability.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

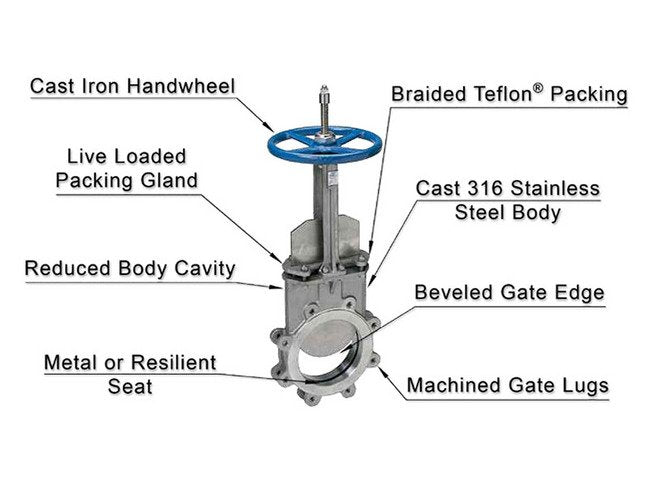

The Sure Flow Scavenger Knife Gate Valve is expertly engineered for demanding industrial applications, offering bi-directional shutoff and superior durability. Crafted from CG8M (317 Stainless Steel), it features hardened components for shearing and sealing, along with close tolerance machining for precision performance. This valve boasts a range of sizes from 3" to 24", complying with TAPPI and ASME standards, making it ideal for OCC recycle, lime mud, plastics, and abrasive services.

Product Specifications

Accessories Accessories

Dimensions Size

10 in | 12 in | 14 in | 16 in | 18 in | 2 in | 20 in | 24 in | 3 in | 30 in | 4 in | 6 in | 8 in

Features Features

Full port bi-directional shutoffHardened beveled gate and hardened seat for shearing and sealingClose tolerance machining between bodiesPrecision ground gate chrome platedRemovable insert ring for ease of repairTwo piece cavity free body eliminates jammingFour post stainless steel stanchionsLive loaded Polytetrafluoroethylene (PTFE) packingAdjustable stainless steel packing glandHigh performance cylinder with safety lock-out system and limit switch bracketsSizes range from 3" to 24" (inquire for larger sizes)Full port conforms to TAPPI.Face to Face conforms to TAPPI TIS 405.8.Flange ends meet ASME B16.5.Full flange drilled and tapped to ASME Class 150 flanges.Conform to TAPPI TIS 405.8 face-to-face.Tested to MSS SP-81.Full Port.Full lug body drilled and tapped to ASME Class 150. Bi-Directional shut-off resilient seated design.Fluorocarbon (FKM) and EPDM seats available.

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

For Scavenger Knife Gate Valve.

Specifications Actuation

Electric | Gear | Pneumatic

Specifications Body Material

CG8M (317 Stainless Steel (S.S.))

Specifications Coupling

CG8M (317 Stainless Steel (S.S.))

Specifications Hardened Gate

Stainless Steel

Specifications Hardened Insert Ring

Stainless Steel

Specifications Nuts Bolts And Studs

18.8 Stainless Steel (S.S.)

Specifications O Ring

Buna

Specifications Packing

Polytetrafluoroethylene (PTFE) Tetrafluoroethylene (TFE)

Specifications Packing Gland

CG8M (317 Stainless Steel (S.S.))

Specifications Seat Material

316 Stainless Steel (SS) | Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Silicone

Specifications Stanchions

303 Stainless Steel (S.S.)

Applications Applications

OCC recycle, lime mud, liquors, plastics, polymers, cement powder and other slurry and abrasive services

Sure Flow Scavenger Knife Gate Valve
