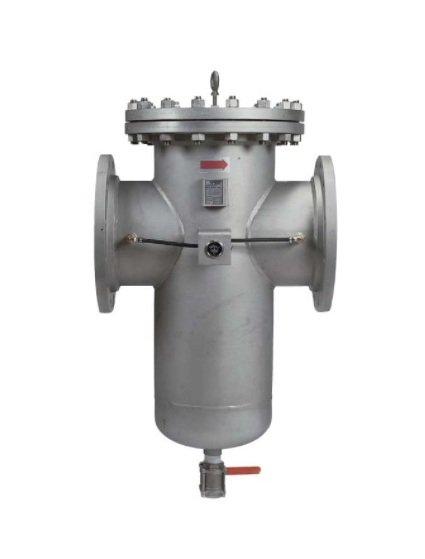

Sure Flow Stainless Steel 2 Inch Fabricated Basket Strainer BW300SS
Sure Flow Stainless Steel 2 Inch Fabricated Basket Strainer BW300SS
SKU:BAS-1b3c6a
Precision-engineered Stainless Steel Basket Strainer for high-pressure filtration. Customizable for efficient debris removal.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow Stainless Steel 2 Inch Fabricated Basket Strainer BW300SS
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow Stainless Steel 2 Inch Fabricated Basket Strainer BW300SS
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Stainless Steel 2 Inch Fabricated Basket Strainer BW300SS is expertly designed for precise filtration, offering superior performance in demanding industrial applications. Constructed from high-grade stainless steel, this basket strainer is built to withstand high pressures and temperatures, making it a reliable choice for filtering solids efficiently. With customizable options like quick-opening covers, various body materials, and specialized baskets, this strainer ensures optimal debris retention and easy maintenance. It meets international standards and can be tailored to meet a range of industry-specific certifications.
Product Specifications
Additional Information Additional Information
Flange sizes can be selected to fit existing piping, or to achieve the required clean pressure drop. Maintenance reducing features include Automatic Flush and Hinged Cover, with or without Davit Assembly.
Construction Body Material
Stainless Steel
Construction Construction

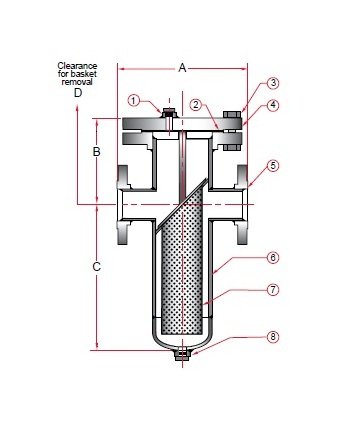

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
6 in
Dimensions Dimension A
14 in
Dimensions Dimension B
9 in
Dimensions Dimension C
12 in
Dimensions Dimension D
26 in
Dimensions Prefix Size
0200
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Strainer Type
Basket
