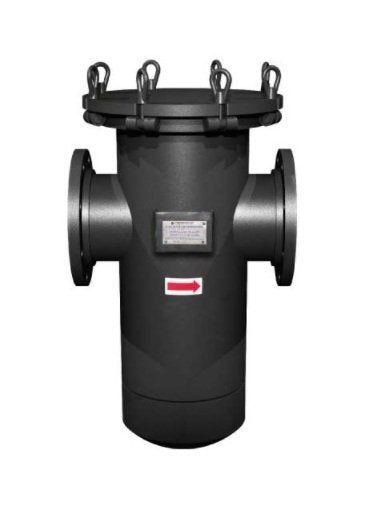

Sure Flow Stainless Steel Fabricated Basket Strainer

Name: Sure Flow Stainless Steel Fabricated Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-233ad7
Price: 129.99 USD
Availability: OutOfStock

SKU:BAS-233ad7

Efficient Sure Flow Stainless Steel Basket Strainer with quick opening closure, ideal for demanding applications. Meets ISO 9001:2008 standards.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow Stainless Steel Fabricated Basket Strainer is a reliable solution developed for demanding applications in the petrochemical market, now available off the shelf for various industries. This strainer features a quick-opening closure for safe and efficient basket removal, facilitated by the venting system. With a stainless steel construction and O-ring seal, it ensures secure closure and effective filtration. Operating at 100 psi and meeting ISO 9001:2008 standards, this strainer offers customizable options for diverse industrial needs.

Product Specifications

Construction Body Material

Stainless Steel

Construction Construction

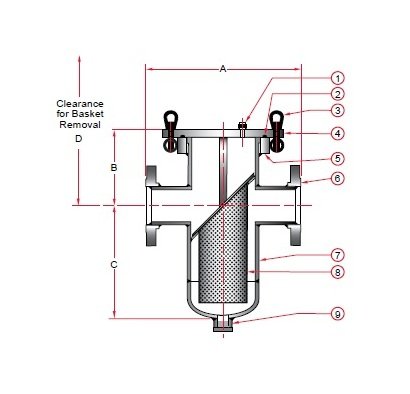

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly

Custom Strainer Options Optional Features

Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available

Custom Strainer Options Special Construction

Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns

Dimensions Body Size

6 in

Dimensions Dimension A

12 in

Dimensions Dimension B

7 1/2 in

Dimensions Dimension C

11 in

Dimensions Dimension D

25 in

Dimensions Prefix Size

0250

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 150 Degree Fahr

100 psi

Specifications Strainer Type

Basket

Sure Flow Stainless Steel Fabricated Basket Strainer
