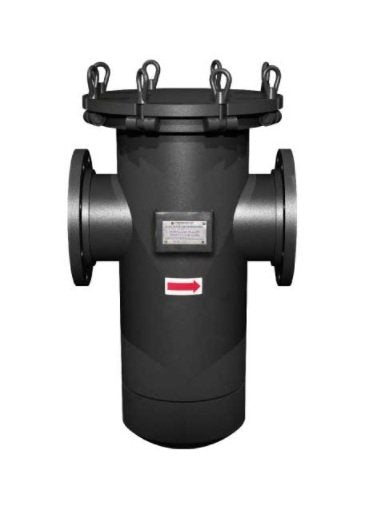

Sure Flow Stainless Steel Fabricated Basket Strainer

Name: Sure Flow Stainless Steel Fabricated Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-da06b6
Price: 699.99 USD
Availability: OutOfStock

SKU:BAS-da06b6

High-quality Stainless Steel Fabricated Basket Strainer with quick-opening closure for efficient cleaning and maintenance.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow Stainless Steel Fabricated Basket Strainer is a high-quality solution designed for the petrochemical market, now a standard product for various industries. Featuring a quick-opening closure for easy basket removal and cleaning, it ensures efficient operation. Constructed with stainless steel and equipped with an o-ring seal, this basket strainer guarantees superior performance and durability. With customizable options and compliance with ISO 9001:2008 standards, it meets the stringent requirements of institutional buyers.

Product Specifications

Construction Body Material

Stainless Steel

Construction Construction

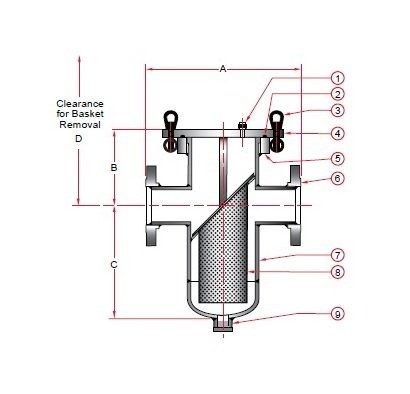

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly

Custom Strainer Options Optional Features

Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available

Custom Strainer Options Special Construction

Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns

Dimensions Body Size

20 in

Dimensions Dimension A

33 5/8 in

Dimensions Dimension B

19 in

Dimensions Dimension C

34 in

Dimensions Dimension D

64 in

Dimensions Prefix Size

1600

Dimensions Size

16 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 150 Degree Fahr

100 psi

Specifications Strainer Type

Basket

Sure Flow Stainless Steel Fabricated Basket Strainer
