Sure Flow Stainless Steel Fabricated Basket Strainer BWEB150SS, 8 inch
Sure Flow Stainless Steel Fabricated Basket Strainer BWEB150SS, 8 inch
SKU:BAS-11553f
Sure Flow Stainless Steel Fabricated Basket Strainer for efficient petrochemical applications, with quick-opening closure and o-ring seal. Customizable options available.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow Stainless Steel Fabricated Basket Strainer BWEB150SS, 8 inch
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow Stainless Steel Fabricated Basket Strainer BWEB150SS, 8 inch
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

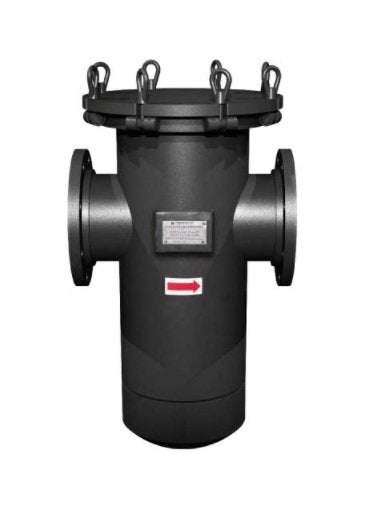

The Sure Flow Stainless Steel Fabricated Basket Strainer BWEB150SS is a reliable choice for petrochemical applications. Featuring a quick-opening closure for easy maintenance and an o-ring seal for secure cover sealing, this strainer ensures efficient operation. Constructed with high-quality stainless steel, it offers durability and resistance to corrosion. With options for custom baskets, body materials, and various end connections, it meets diverse operational needs. Compliant with ISO 9001:2008 standards, this strainer guarantees quality and performance excellence.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

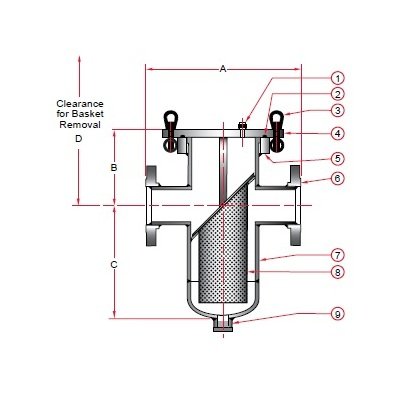

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
12 in
Dimensions Dimension A
20 1/8 in
Dimensions Dimension B
11 7/8 in
Dimensions Dimension C
23 in
Dimensions Dimension D
40 3/4 in
Dimensions Prefix Size
0800
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
