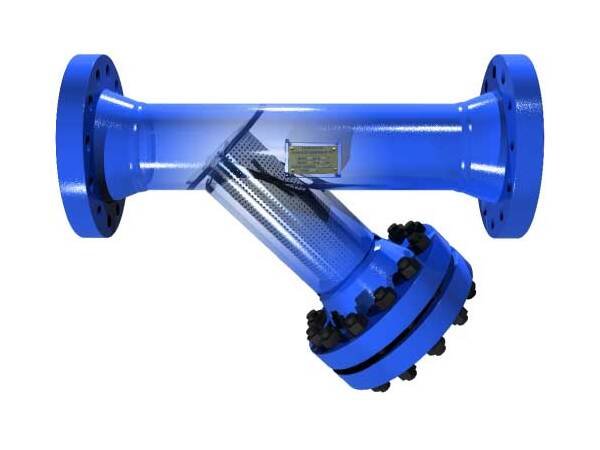

Sure Flow Stainless Steel Fabricated Y Strainer - 5"

Name: Sure Flow Stainless Steel Fabricated Y Strainer - 5"
Brand: Sure Flow Equipment, Inc.
SKU: FAB-99390e
Price: 289.99 USD
Availability: OutOfStock

SKU:FAB-99390e

Reliable Sure Flow Stainless Steel 5" Y Strainer with ASME compliance for precision filtration in institutional settings.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow Stainless Steel Fabricated Y Strainer in 5-inch size is a robust solution designed for a wide range of applications. Constructed with precision in mind, this Y strainer offers durability and reliability. With ASME Section VIII compliance, rated at 720 psi for water, oil, and gas at 100°F, and 300 psi for 422°F steam temperatures, it meets stringent industry standards for quality and performance. The 0.125" screen opening ensures effective filtration, while the customizable options for different pipe sizes and pressure ratings make it adaptable to varying needs. Ideal for institutional and government procurement requirements.

Product Specifications

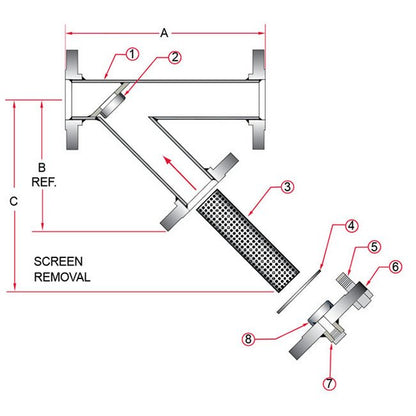

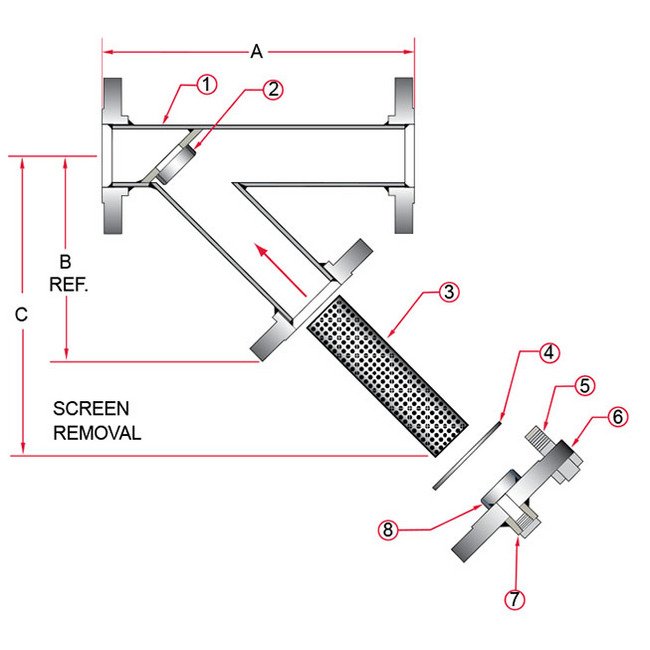

Construction Construction

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide

Dimensions Dimension A

18 in

Dimensions Dimension B

14 1/2 in

Dimensions Dimension C

21 in

Dimensions Prefix Size

0500

Dimensions Size

5 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

720 psi

Operating Pressures And Temperatures Pressure At 422 Degree Fahr

300 psi

Specifications Connection Type

Fabricated

Specifications Material

Stainless Steel

Standard Screens Screen Opening

0.125 in

Sure Flow Stainless Steel Fabricated Y Strainer - 5"
