Sure Flow Stainless Steel Y Strainer FW150SS 4 Inch
Sure Flow Stainless Steel Y Strainer FW150SS 4 Inch
SKU:FAB-6626ff
Sure Flow FW150SS 4in Stainless Steel Y Strainer with ASME compliance & ISO 9001:2008 certified for optimal filtration in industrial settings.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow Stainless Steel Y Strainer FW150SS 4 Inch
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow Stainless Steel Y Strainer FW150SS 4 Inch
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

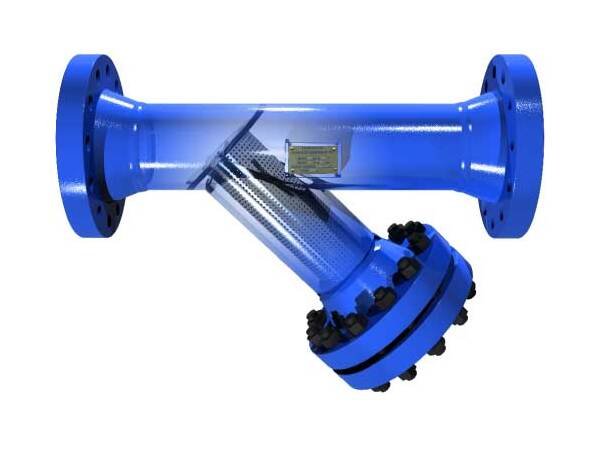

The Sure Flow FW150SS 4 Inch Stainless Steel Fabricated Y Strainer is expertly crafted to meet the demands of industrial applications. Constructed from durable Stainless Steel, this Y strainer is designed for optimum performance in filtering solids from various fluids. With ASME Section VIII, Div 1 compliance and ISO 9001:2008 certification, it ensures top-notch quality and reliability. The screen openings of 0.125 inches provide efficient filtration, while the robust construction and customizable sizing options make it ideal for diverse settings.
Product Specifications

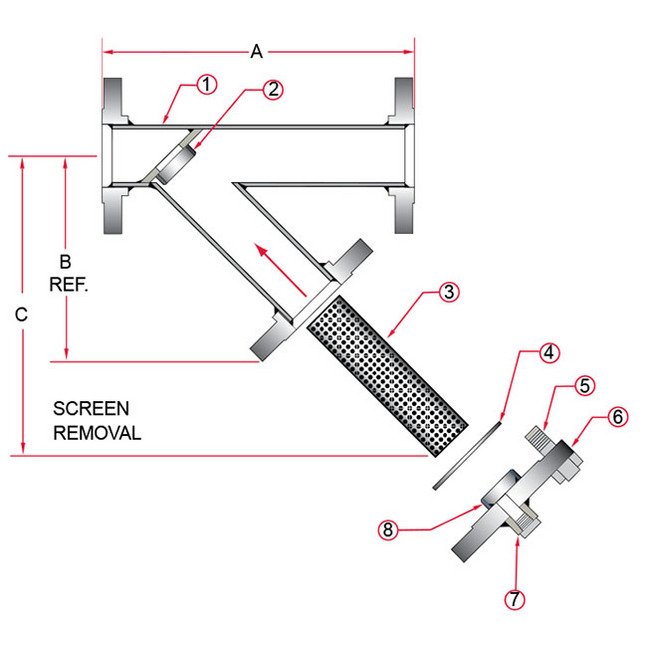

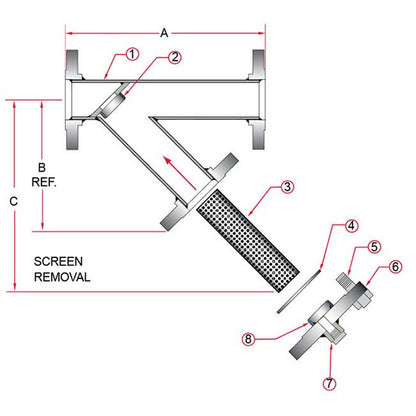

Construction Construction
Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
18 in
Dimensions Dimension B
13 in
Dimensions Dimension C
18 in
Dimensions Prefix Size
0400
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
