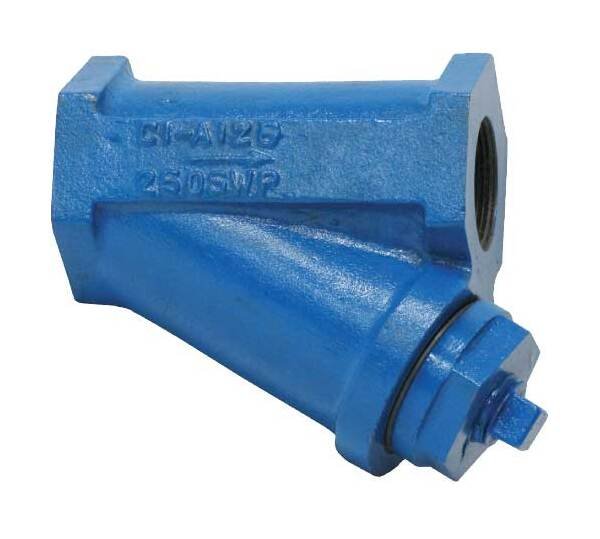

Sure Flow T250 1/2 Inch Cast Iron Threaded Y Strainer
Sure Flow T250 1/2 Inch Cast Iron Threaded Y Strainer
SKU:YST-0e6864
Reliable Sure Flow T250 Cast Iron Y Strainer for efficient filtration in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Sure Flow T250 1/2 Inch Cast Iron Threaded Y Strainer
$59.99
Quantity: 1
Claim Your Seller Account
Sure Flow T250 1/2 Inch Cast Iron Threaded Y Strainer
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow T250 1/2 Inch Cast Iron Threaded Y Strainer is expertly crafted to provide efficient filtration with a removable stainless steel screen. With a machined seat for a perfect fit and NPT blow-off with plug, this strainer allows easy maintenance and reliable particulate removal. Operating at pressures up to 250 psi for steam and 400 psi for water, oil, and gas, it meets ISO 9001:2008 standards and is constructed with high tensile ASTM A126 Class B Cast Iron.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
3/8 in

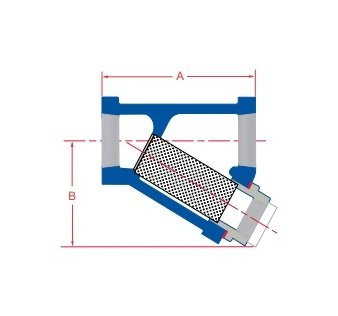

Dimensions Dimension A
3 3/16 in
Dimensions Dimension B
2 1/16 in
Dimensions Prefix Size
0050
Dimensions Shipping Weight
5 lb
Dimensions Size
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
400 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Threaded
Standard Screens Screen Opening
0.032 in
Standard Screens Standard Screen
20 mesh
