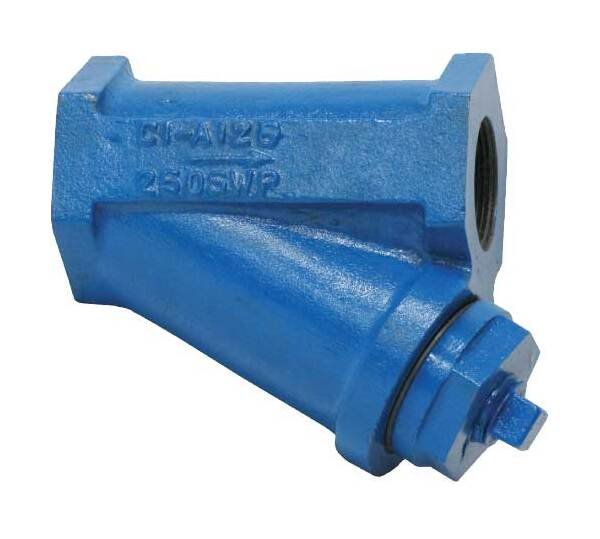

Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer
Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer
SKU:YST-735e93
Ensure precise filtration with the Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer. Perfect for steam and water applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow T250 2 1/2 Inch Cast Iron Threaded Y Strainer is engineered for precision and durability. Featuring a machined seat for a secure fit, this strainer includes a removable stainless steel screen. With NPT blow-off and plug included, offering easy on-line blow-down. Operating at 250 psi at 400°F for steam and 400 psi at 150°F for water, oil, and gas, this strainer meets the highest standards in construction materials and design.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/2 in

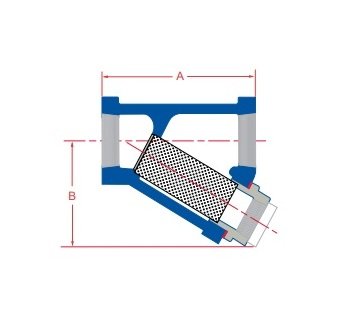

Dimensions Dimension A
9 1/4 in
Dimensions Dimension B
5 7/8 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
37 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
400 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Threaded
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
